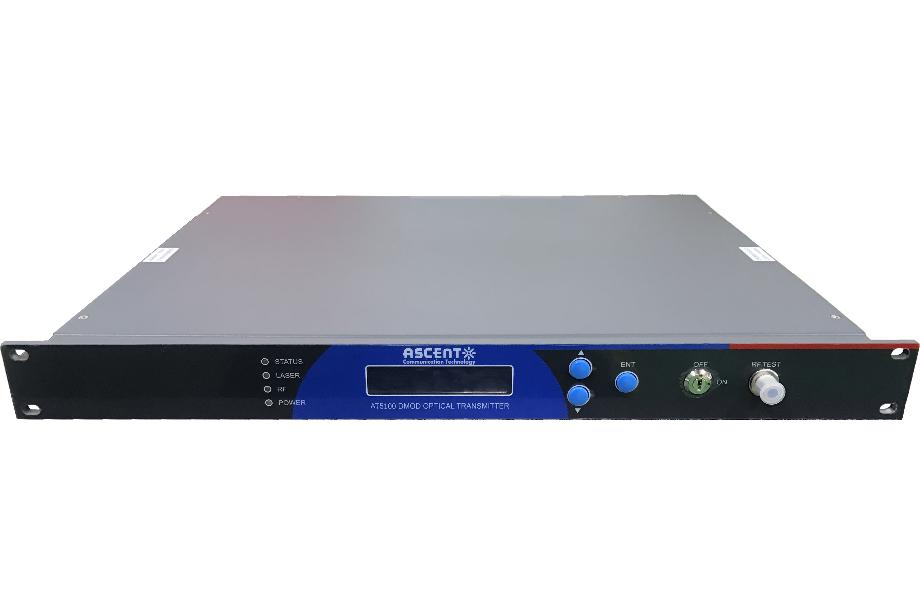

AT5100 XMOD2 Transmitter

AT5100 1RU Dual Output 1550nm Externally-Modulated (XMOD2) Laser Transmitter offers a flexible, medium and long distance and scalable optical transmission for high quality analog and digital video in CATV networks.

•    High performance on CSO, CTB with RF pre-distortion circuit

•    Dual optical output power up to 10dBm

•    Suitable for long distance 1550 nm DWDM Video transmission applications

•    Suitable for short, medium distance FTTH applications

•    Low noise DFB continuous wave laser, reduce the dispersion effect

•    Optimized models for 60 PAL or 89 PAL channels, 80 NTSC channels or 110 NTSC channels

•    Dual redundant hot-swappable AC or DC power supplies

•    Field-adjustable Stimulated Brillouin Scattering (SBS) suppression for optimized CSO

•    Front-panel LCD for local monitoring of transmitter status

•    Local or remote monitoring and configuration

•    SNMP/HTTP monitoring, management and control


AT5100 XMOD2     1550 nm Externally‑Modulated (XMOD) Laser Transmitter ‑ 19” 1RU

Items

Unit

Min.

Typ.

Max.

Notes

Optical






Wavelength

nm

1540


1563

Compatible with ITU wavelength

Output Port No.


1

2



Each Output

dBm

5


10

1 dBm/step

Laser linewidth

MHz

0.35


SMSR

dB

45

50



RIN

dB/Hz



‑160

20 MHz to 1002 MHz

Optical Return Loss

dB

50




Fiber Connector


SC/APC

FC/APC, LC/APC Optional

RF




Bandwidth

MHz

47


1218

860 MHz / 1002 MHz optional

Input Level

dBμV

75

80

85

AGC

MGC ATT

dBμV

0


15

In MGC

Unflatness

dB

‑0.75


+0.75

47 to 1002MHz

Return Loss

dB

16



47 to 1002MHz

Input Impedance

Ω


75



RF Connector


F Metric/ Imperial

Optional

Link




Test Channels


PAL‑D/59CH

PAL‑D/99CH


CNR1

dB

≥53.0

52.0

TX to RX, 0 dBm input to node

CNR2

dB

≥51.0

50.0

65K fiber, 0 dBm input to node

CTB

dB

≥65


CSO

dB

≥65


SBS

dBm

13


19

Adjustable, Step 0.1dB

General






Network Management


SNMP, WEB supported


Power Supply

V

90


265

AC

‑72


‑36

DC

Power Consumption

W



50

Dual power supply, 1+1back up

Working Temperature

°C

‑5


+65

Auto case temp control

Storage Temperature

°C

‑40


+85


Working Relative Humidity

%

5


95


Dimensions (W×L×H)

mm

450 × 483 × 44


Weight

kg

7.4




Note: Measured in a typical system configuration for the nominated channel numbers and nominated fibre lengths for each model at 25 °C ambient temperature.
