Ascent Communication Technology

AS2300 Series L2 Switch

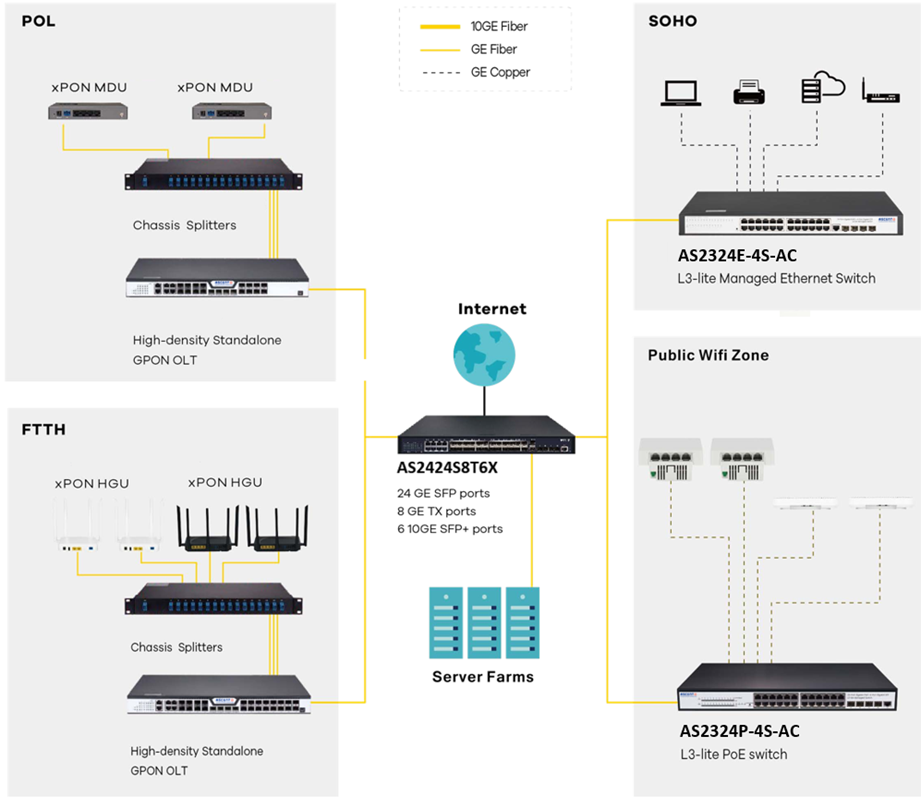

ACT AS2300 series Optical Fiber Gigabit Ethernet Switch is a new generation, intelligent and high-performance L3-Lite switches which provide network operators and service providers with a cost-effective access layer for Fast Ethernet P2P services in Fiber to The Home/Business (FTTH & FTTB) networks. AS2300 series includes standard non-POE and POE versions with two base models each: AS2308, AS2324. The platform provides high-density ports with flexible configuration options and a user-friendly interface to allow operators to quickly and easily expand their existing networks and services. AS2300 series is designed for carrier's IP MAN and enterprise networks. Based on the latest hardware and BDROS platform, it supports functions such as ACL, QinQ and QoS. It’s simple management mode and flexible installation can meet the requirement of any complicated scenarios. AS2300 offers compatibility with all existing Fast Ethernet or Gigabit Ethernet devices in the network. It provides high-performance switching and seamless cooperation with ACT routing and switching products. Combined with ACT’s Video Overlay package, the AS2300 can provide the perfect end-to-end FTTX solution in offering advanced video, voice, and data services.

• Supports the carrier-level Ether-net-ring protection protocol

• Powerful ACL functions to access and control L2 to L7 data based on physical port

• Supports In-Service Software Up-grade (ISSU)

• Supports various L2 multicast functions such as IGMP-snooping, fast-leave and MVR to fully meet the operation requirements of carrier’s IPTV

• Supports the IPv6 protocol suite, IPv6 neighbor discovery, ICMPv6 and Path MTU discovery

• Supports priority retagging and complicated ﬂow classiﬁcation based on VLAN

• Provides ﬂexible bandwidth control policies

• Supports multiple queue schedule algorithms such as SP, WRR and “SP + WRR”

• Equipment-level security

• Low power consumption to save on maintenance and services costs

• SNMP remote web management

• Supports FTP,TFTP and SFTP, ISSU, SNMP and NMS smart network management platform

Product Characteristics

Item	Unit	AS2308E-2S-AC	AS2324E-4S-AC
Interface		8-Port Gigabit RJ45 2-Port Gigabit SFP	24-Port Gigabit RJ45 4-Port Gigabit SFP
Console		1 RJ45 port, 1 RST button	1 RJ45 port, 1 RST button
Backplane	Gbps	20	56
Forwarding Rate	Mpps	15	42
Chassis
Dimensions(W×D×H)	mm	280 x 180 x 44	440 × 210 × 44
Weight (Empty)	kg	1.55	2
Package
Dimensions(W×D×H)	mm	346 x 289 x 92	555 x 295 x 88
Weight	kg	2.55	3
Power Consumption
No-Load	W	<3	<7
Full-Load	W	10	20
Power Supply
AC: 100V-240V, 50Hz±10%	W	15	25
Total Output BTU (1000BTU/H=293W)		51.19	85.32
Fan Number		No	No
Noise@25(dBA)	°C	0	0
MTBF	H	>200,000	>200,000
Forwarding Mode		Store-forward	Store-forward
Flash	MB	16	16
DRAM	MB	128	128
MAC	K	8	8
Buffer Size	MB	4.1	4.1
Jumbo Frame	K	9	9
Total SVI		10	10

Features

Item	Description
VLAN	4K Active VLAN QinQ & Selective QinQ GVRP, Private VLAN Voice VLAN
Spanning Tree	802.1D(STP) 802.1W(RSTP) and 802.1S(MSTP) BPDU guard, root guard and loopback guard
Multicast	IGMP v1/2/3 IGMP Snooping IGMP Fast Leave IGMP Filter MVR
IP	Static route RIP, OSPF 128 routing table IPv4/v6 dual stack DHCP Server/Client/Relay
QoS	CAR, HQoS, MAC/IP/TCP/UDP/ VLAN/ COS/ DSCP/TOS based QoS, 802.1P/DSCP priority relabeling, SP,WRR, and “SP+WRR”, Tail-Drop, WRED, ﬂow monitoring and trafﬁc shaping
Security	Port isolation, Port security, and “IP+MAC+port” binding, MAC sticky DHCP Snooping and option 82, DAI& IP source guard, PPPoE+ IEEE 802.1x, Radius and BDTacacs+ L2/L3/L4 ACL ﬂow identiﬁcation and ﬁltration Anti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc Broadcast/multicast/unknown unicast storm-control Md5, SHA-256, RSA-1024, AES256, etc
Reliability	Static/LACP link aggregation, Interface backup EAPS and ERPS ISSU
Management	Console, Telnet,SSH v1/2,HTTP, HTTPS, SNMP v1/v2/v3, RMON TFTP, FTP, SFTP NTP ZTP(Zero Touch Provisioning) SPAN, RSPAN
Accessories	Power cord, rackmount kits, console cable, anti-slipping pad
Environment	Operating temperature/humidity: -0°C to 50°C, 10% to 90% non condensing Storage temperature/humidity: -20°C to 70°C, 5% to 90% non-condensing
Certification	CE, FCC,ROHS
