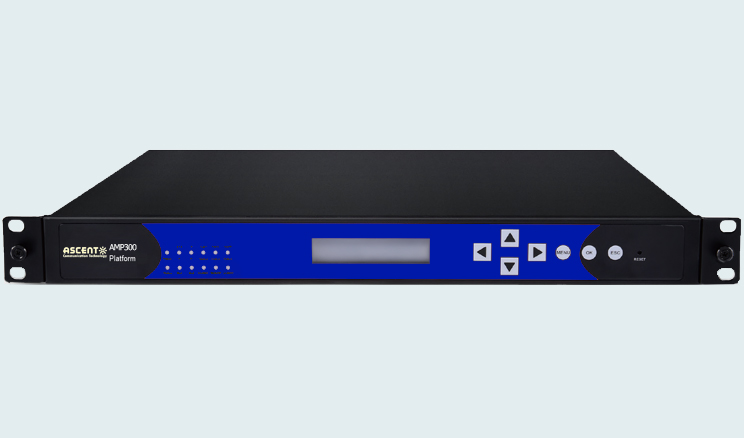

AMP300-CH

Ascent’s AMP300 is a cost-effective multipurpose video processing platform useful for various video delivery applications.

•    Compact modular design: 1RU with 3 modules

•    Supports up to 4 Gbps video multiplexing and TS stream multiplexing/grooming

•    Supports EIT multiplexing (optional) and EPG/SI insertion (both DVB and ATSC standard)

•    Embedded ASI/IP interfaces in the main chassis

•    Dual redundancy power supply (optional)

•    Easy configuration tools: Web-UI and SNMP

•    Easy upgrade to new technologies with only module replacement

•    Low power consumption and high reliability with MTBF (Mean Time Between Failure) ≥100,000 hours


Chassis

Capacity

4 Gbps (approx. 1000 programs)

Slot Number

3 slots

Interface

2 × ASI Inputs (BNC, Female, 75 Ω ports)

2 × ASI outputs (BNC, Female, 75 Ω ports)

1 × GbE TS/IP (RJ45)

1 × management (RJ45)

ASI (On‑Chassis)

Bit Rate per Port

1 MPTS/SPTS at max. 100Mbps per port

Multiplexing

Routing

Any input to any output

Table Supported

SI/PSI/PSIP

PID Processing

Pass‑through, remapping, filtering

EIT Processing

Re‑multiplexing (optional) and pass‑through

External Data

EPG and SI insertion

Management

Hardware Interface

1 × RJ45 (100 Mbps)

User Interface

LED indicators

LCD screen

Front panel control

Web UI

SNMP (monitoring only)

IP (On‑Chassis)

Protocol

TS over UDP/RTP, unicast/multicast

MPEG TS

MPTS and SPTS

Channel

64 streams input

32 streams output

Bit Rate per Port

Max. 780 Mbps (effective 650 Mbps)

De‑jittering

PCR

Management

IGMP V1, IGMP V2, IGMP V3

FEC

ProMPEG, input and output

Physical

Input Voltage

90 VAC to 260 VAC

Dual Power Supply

Optional

Power Consumption

Max. 60 W

Chassis Dimensions (W × H × D)

480 mm × 44 mm × 440 mm, 1RU

Operating Temperature

0 °C to 50 °C

Storage Temperature

‑10 °C to 70 °C

Operating Humidity

<95 % RH

MTBF

≥100,000 hours
