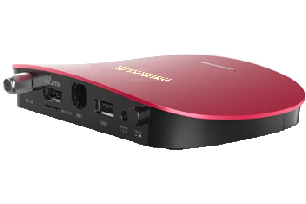

Ascent’s AS926 IP Based High Definition Over-the-top (OTT) Set Top Box (STB) is an intelligent subscriber home device designed to provide the ultimate user experience with support for various IPTV services including multicast, VOD, and internet access.
• ARM Cortex A53 quad-core CPU with MPEG decode
• Mali-450 × 4 GPU
• 2K video decoding
• Bluetooth 4.1
• Plug & Play
• WiFi 802.11ac 2.4G/5G dual band 2T × 2R
• Flexible audio and video outputs
• Easy installation and setup
• Remote management
• Fully compatible with open protocols
SoC | ARM Cortex A53 Quad Core CPU |
GPU | Mali‑450*4 |
FLASH | eMMC flash 8G (optional) |
SDRAM | DDR3 2G |
WIFI | 802.11 a/b/g/n/ac 2.4G/5G dual band 2T×2R |
Bluetooth | V4.1 |
Rear Panel | |
HDMI | 1 × digital audio/video output |
A/V | 1 × 3.5 mm Jack |
DC Port | 1 × 12V/1A; 220V/110V; 50/60 Hz |
Ethernet Interface | 1 × 10/100 Mbit/s Base‑T, RJ45 |
Power Switch | 1 × ON/OFF |
Micro SD Port | 1 × micro SD card |
Side Panel | |
USB | 2 × USB2.0 Host |
Front Panel | |
IR | 1 × IR Receive |
LED | 1 × for Power, Link, and IR indicators |
Decoding | |
Video Decoding | H.264 HP @ level 5.0, H.265 Main10 profile @ L5.1 High‑tie |
Audio Decoding | MPEG‑1(layer1, 2), MP3, Mono, Stereo, HDMI2.0a |
Image Decoding | JPEG, PNG |
Accessories | |
RCU | Standard remote controller |
Power Adapter | 1PCS, black, 12V/1A |
Ethernet Cable | 1PCS, black, 1 m or 1.5 m (Optional) |
HDMI Cable | 1PCS, black, 1 m or 1.5 m (Optional) |
Mini AV Cable | 1PCS, black, 1 m or 1.5 m (Optional) |
Remote Control | Optional |
RCU Battery | Optional |
Packing | |
Gift Box | 213 mm × 155 mm × 60 mm customized STB packing box |
User Manual | Customized content |
Name Plate | 35 mm × 25 mm |
QC Pass card | 30 mm × 40 mm |
SN/MAC label | 45 mm × 15 mm |
Carton no. label | 50 mm × 20 mm |
Carton label (SN/MAC) | 90 mm × 90 mm |
Carton | 448 mm × 325 mm × 338 mm, K=K |
Others | |
Power Consumption | <10 W |
Dimensions (W × D × H) | 110 mm × 108 mm × 26 mm |
