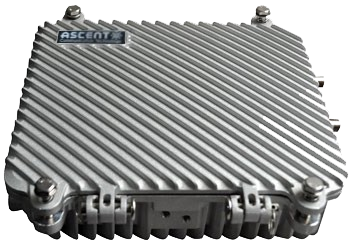

ARF100C Line AMP

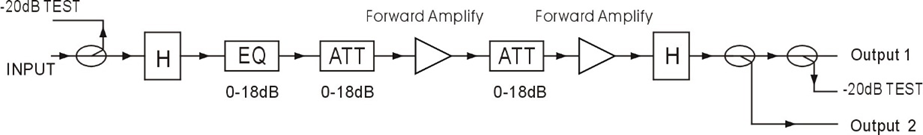

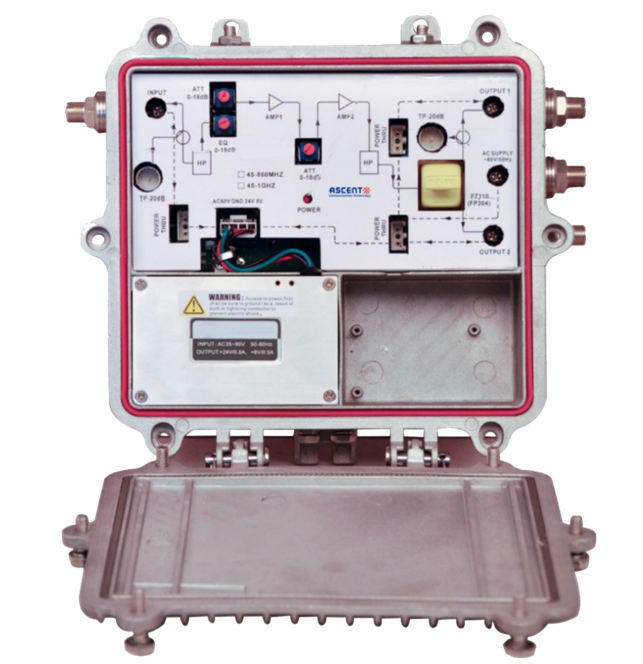

The ARF100C Series unidirectional line amplifier is designed for reliable downstream CATV and digital television signal distribution in HFC, MDU, FTTB and FTTC networks. Based on the proven outdoor amplifier platform, it provides high forward-path gain and output performance in a compact housing for cost-effective network extension and signal level restoration. The ARF100C supports a 47 to 862MHz forward path with rated gain of at least 41dB and rated output level up to 112dBμV. Adjustable input equalization and attenuation, interstage attenuation, plug-in output tap/splitter options and -20dB test points provide flexible field setup and convenient system maintenance. With an aluminium weather-resistant housing, high-reliability switching power supply and lightning protection design, the ARF100C is suitable for demanding access-network environments. Unlike the ARF110C bidirectional series, ARF100C is a forward-path-only amplifier for applications where a return-path amplifier is not required.

·       862 MHz Forward Bandwidth

·       Cost-Effective, High-Performance Design

·       1 or 2 RF Output Options

·       High Output Level up to 112 dBµV

·       Low Distortion and Excellent Signal-to-Noise Performance

·       Adjustable Equalizer and Attenuator for flexible field setup

·       Integrated Test Ports for convenient signal monitoring and adjustment

·       GaAs Technology for reliable RF performance

·       Compact, Waterproof Aluminum Housing suitable for MDU and outdoor installations

·       High-Reliability Switching Power Supply

·       Integrated Lightning Protection for stable long-term operation in demanding environments


Item

Unit

Technical Parameter

Forward Path

Frequency Range

MHz

47 to 862

Rated Gain(with Tap output)

dB

≥41

Rated Input Level

dBμV

72

Rated Output Level

dBμV

≥112

Flatness in Band

dB

±0.5

Noise Figure

dB

≤6.5

Return Loss

dB

≥16

C/CTB

dB

≥66

C/CSO

dB

≥64

Input Equalizer

dB

0 to 18(continuously adjustable)

Input Attenuation

dB

0 to 18(continuously adjustable)

Interstage Attenuation

dB

0 to 18(continuously adjustable)

General Performance

RF Input Connector


F type

RF Output Connector


F type

Characteristic Impedance

Ω

75

Protection Class


Better than IP 42

Power Supply Voltage

V

A: AC(150 to 250)V;  B: AC(35 to 90)V 50 to 60Hz

Operating Temperature

°C

-20 to 50

Impulse Withstand Voltage

kV

>5(10/700μs)

Power Consumption

W

≤14

Dimension

mm

220(L) * 205(W) * 65(H)
