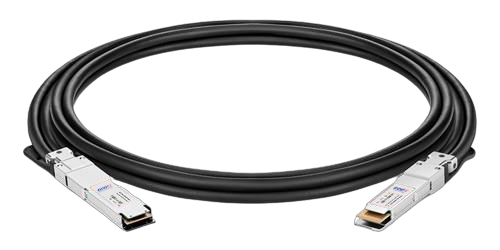

800G OSFP DAC (Passive Direct Attach Copper) enables highbandwidth 800G links and supports 800G Ethernet rate. It provides an OSFP copper direct-attach solution. This cable is compliant with OSFP MSA (Multi-Source Agreement), IEEE 802.3ck and 400GBase-CR4 standards. This direct attach copper twinax cable is suitable for short-distance connectivity within a rack or between adjacent racks in data centers. The 800G OSFP DAC cable contains 16 (8 transmitting and 8 receiving) high-speed copper pairs, each operating at data rates of up to 106.25Gb/s, which are suitable for very short links and offer a cost-effective and power-efficient way to establish a 800-Gigabit link between OSFP ports of switches/routers within racks and across adjacent racks. The 800G OSFP DAC assembly is high-speed, cost-effective alternatives to OSFP optical modules in 800G Ethernet applications. It meets OSFP800 MSA, IEE802.3ck, 400GBaseCR4 standards. These high performance 800G OSFP-to-OSFP copper direct-attach cables are offered in lengths of 1, 1.5, and 2 meters.
· OSFP Module compliant to OSFP MSA
· Transmission data rate up to PAM4 106.25Gbps per channel
· Enable 800Gb/s Transmission
· Link length up to 3m
· Built-in EEPROM functions
· Operating case temperature 0°C to +70°C
· RoHS2.0 compliant
Parameter | Symbol | Min. | Max. | Units | Note |
Supply Voltage | Vcc | -0.3 | 3.3 | 3.6 | V |
Storage temperature | Ts | -40 | 85 | °C | |
Operating Case temperature | Tc | 0 | 70 | °C | |
Humidity | Rh | 5 | 85 | % | |
Data Rate | 800 | Gbps |
Recommended Operating Conditions
Parameter | Symbol | Min. | Typ. | Max. | Unit |
Length | L | 0.5 | 5 | M | |
AWG | 32 | 25 | AWG | ||
Jacket material | Hair Tail Technology Net, Gray |
Parameter | Symbol | Min. | Typ. | Max. | Unit |
Power supply voltage | VCC | 3.1 | 3.3 | 3.5 | V |
Input Amplitude | 800 | 1200 | mVpp | ||
Input LOW Voltage | VIL | -0.3 | 0.35*VCC | V | |
Input HIGH Voltage | VIH | 0.65* VCC | VCC +0.3 | V | |
Output Logic LOW | VOL | 0.25*VCC | V | ||
I2C Master Mode Output Frequency | 400 | kHz | |||
800G end Power consumption | 1.2 | 1.5 | W | ||
400G end Power consumption | 0.3 | 0.4 | W |
High-Speed Specifications
Parameter | Symbol | Min. | Typ. | Max. | Unit |
Raw cable impedance | Zca | 90 | 100 | 110 | ohm |
Mated connector Impedance | Zmated | 85 | 115 | ohm | |
Maximum insertion Loss at 26.56 GHz | SDD21 | 11 | 19.75 | dB | |
Differential to common-mode return loss | SCD11/22 | For 0.05 =f =40 GHz, Where f is the frequency in GHz | V | ||
Differential to common-mode conversion loss | SCD21-SDD21 | For 0.05 =f =40 GHz, Where f is the frequency in GHz RLCC)≥18 | V | ||
Common-mode to common-mode return loss | SCC11/22 | For 0.05 =f =40 GHz, Where f is the frequency in GH | kHz | ||
Minimum COM | COM | 3 | dB | ||
Minimum cable assembly ERL | ERL | 8.25 | dB | ||
BER | 2.4x10-4 |
