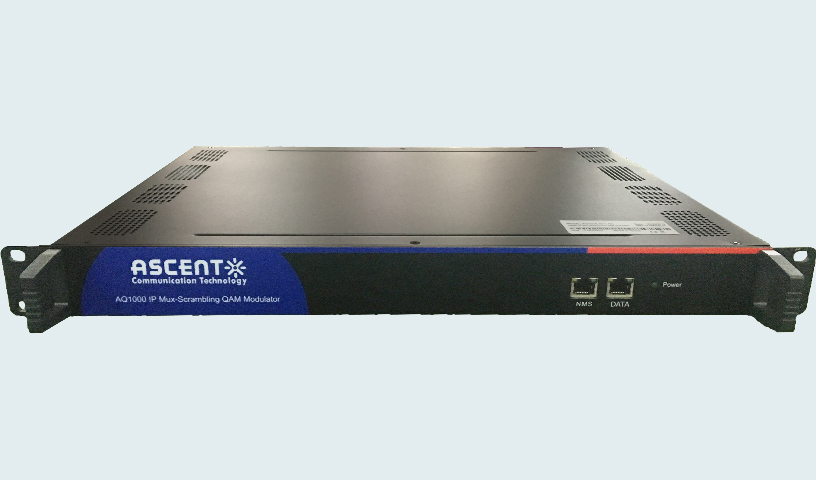

AQ1016 IPQAM Modulator

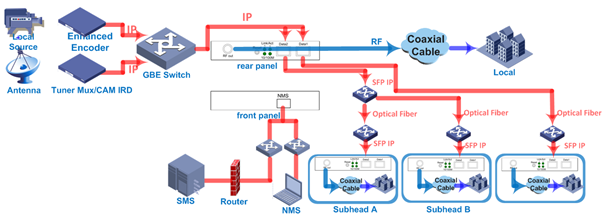

AQ1016 IP QAM modulator is an up-to-date MUX-scrambling-modulating all-in-one device. With the unique ability to perform high density QAM modulation, the AQ1016 allows multiservice providers to deliver more digital video services today and to make a smooth migration to next generation architectures, enabling the delivery of on demand Video and advanced Data services.
• 2 × GE inputs, Data 1 and Data 2, one additional GE port for input only
• Supports up to 512 channels TS over UDP/RTP, unicast and multicast, IGMP v2/v3
• Max 840 Mbps for each GE input
• Supports accurate PCR adjusting
• Supports CA PID filtering, remapping, and PSI/SI editing
• Supports up to 180 PIDS remapping per channel
• Supports DVB general scrambling system (ETR289), and Simulcrypt standards ETSI 101 197 and ETSI 103 197
• Supports 16 multiplexed or scrambled TS over UDP/RTP/RTSP output
• 16 adjacent or non-adjacent QAM carrier outputs (within 192MHz range), compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
• Supports RS (204, 188) encoding
• Supports Web-based network management
Input | |
Input | 3 × 100/1000M Ethernet Port, 512 IP × 2 + 128 IP x 1 input, |
Transport Protocol | TS over UDP/RTP, unicast and multicast, IGMP v2/v3 |
Transmission Rate | Max 840 Mbps per GE input |
Mux | |
Input Channels | 512 |
Output Channels | 16 ( within 192MHz range ) |
Max PIDs | 180 per channel |
Functions | PID remapping (auto/manual optional) |
PCR accurate adjusting | |
PSI/SI table automatically generating | |
Scrambling Parameters | |
Max Simulcrypt CA | 4 |
Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 |
Connection | Local/remote connection |
Modulation Parameters | |
QAM Channel | 16 adjacent or non‑adjacent carriers |
Modulation Standard | EN300 429/ITU‑T J.83A/B |
Symbol Rate | 5.0 Msps to 7.0 Msps, 1 ksps stepping |
Constellation | 16, 32, 64, 128, 256QAM |
FEC | RS (204, 188) |
RF Output | |
Interface | 1 F‑type output port for 16 carriers, 75 Ω impedance |
RF Range | 50 MHz to 960 MHz, 1 kHz stepping |
Output Level | ‑20 dBm to +10 dBm (87 dBµV to 117 dBµV), 0.1 dB stepping |
MER | ≥40 dB |
ACLR | ‑60 dBc |
TS Output | 16 IP outputs over UDP/RTP/RTSP, unicast/multicast, 2 100/1000M Ethernet Ports |
System | Supports network management software (NMS) |
General | |
Dimensions (L × W × H) | 440 mm × 420 mm × 44.5mm |
Weight | 3 kg |
Operation Temperature | 0 °C to 45 °C |
Storage Temperature | ‑20 °C to +80 °C |
Power Supply | AC 100 V ± 10%, 50/60 Hz or AC 220 V ± 10%, 50/60 Hz |
Power Consumption | 15.4 W |
