AD624T XGSPON ONT

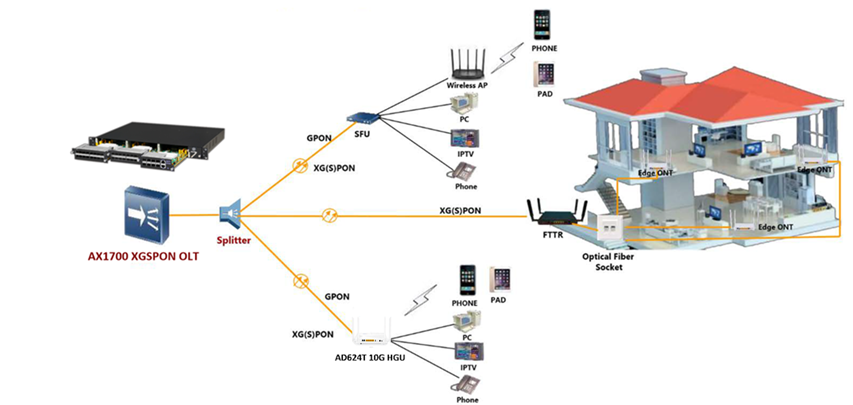

The AD624T is a high-performance WiFi 6 XGSPON VoIP Gateway ONT, engineered for next-generation fiber-to-the-home (FTTH) applications. It supports the IEEE 802.11a/b/g/n/ac/ax standards over both 2.4GHz and 5GHz bands, offering a combined wireless data rate of up to 3000Mbps. Designed to meet the demands of modern networking, the AD624T is compliant with ITU-T G.9807.1 standards and delivers 10Gbps symmetrical upstream and downstream bandwidth. It features 3 Gigabit Ethernet ports, 1 adaptive 2.5G LAN port, 2 FXS voice ports, and robust Layer 2/3 networking capabilities, including VLAN tagging, rate limiting, MAC address filtering, IGMP snooping, and AES encryption. This comprehensive feature set enables reliable triple-play service delivery and seamless voice, video, and internet integration. The AD624T excels in reliability, flexibility, and manageability, offering remote software upgrades, SNMP-based EMS management, and support for multiple authentication methods. Its low power consumption, compact form factor, and enhanced Quality of Service (QoS) capabilities make it a cost-effective and scalable solution for broadband operators. Whether deployed in new rollouts or upgrades, the AD624T empowers service providers to deliver high-speed, secure, and future-ready fiber access.

·         Support ONU auto-discovery/Link detection/remote upgrade of software

·         Support SN and LOID+Password multiple registration methods

·         Support port VLAN configuration

·         Support port-based rate limitation and bandwidth control

·         Support port flow-control

·         Support MAC address learning

·         Support MAC address learning account limit

·         Support VLAN transparent/tag/translate/trunk

·         Support broadcasting storm resistance function

·         Support igmp transparent/snooping/proxy mode

·         Support Dynamic Bandwidth Allocation (DBA)

·         Support AES encryption and decryption

·         EMS network management based on SNMP convenient for maintenance

·         Support power-off alarm function ,easy for link problem detection

·         Support Firewall

·         Support MAC address/URL filter

·         Support Remote WEB/Telnet access control


Parameter


Description

Hardware

User Port (LAN)


RJ-45 connector



3* 10/100/1000Mbps and 1*2.5G adaptive Ethernet port



Full/Half Duplex



Auto MDI/MDI-X

Indicators


PWR / PON / LOS / LAN1-4 / INT / TEL1-2 / WIFI /USB

PON Port

PON Mode

XGSPON: FSANG.9807.1standard


Port Rate

XGSPON: 10Gbps/10Gbps downstream/upstream


Wavelength

1270nm/1577nm


Receiving Sensitivity

XGSPON: -28dBm


Saturation Power

XGSPON: -9dBm


Average Sending

XGSPON: +4 to +9dBm

Features



WIFI


IEEE802.11b/g/n/ax(2.4G) IEEE802.11a/n/ac/ax(5G)

2.4G: 40Mhz bandwidth maximum rate 574Mbps 5G: 160Mhz bandwidth maximum rate 2402Mbps Total wireless rate is 3000Mbps

2.4G EIRP: 22dBm / 5 G EIRP:21dBm

User Port(POTS)


RJ-11 connector

2*accounts

SIP protocol

TDMF

G711U/G711A/G729/G722 encoding and decoding

Power Supply



Adapter


External 12VDC/1A power supply adapter

Power Consumption

<23.3W

Environment

Working Temperature

0°C to 40°C

Operating Humidity


10 to 90% (Non-condensing)

Mechanics

Dimensions


210mm(L) * 135mm(W) * 45mm(H)

Weight


228g
