AOP ODF Patch Panel 1U

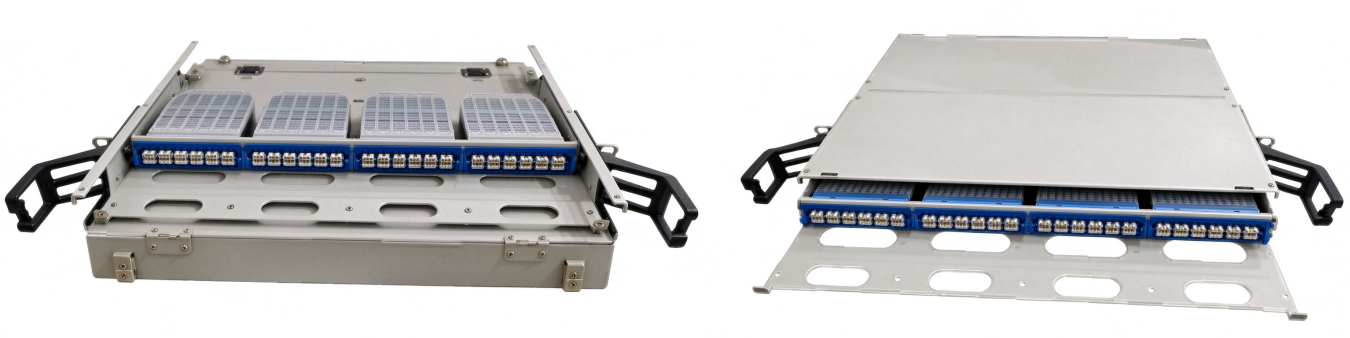

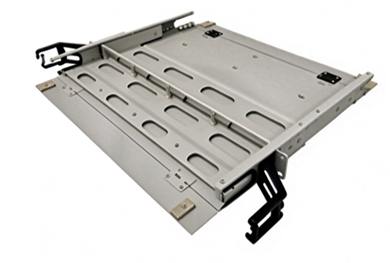

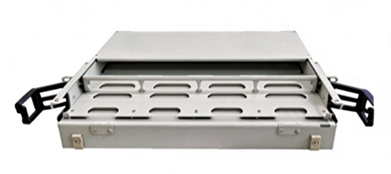

Ascent's AOP-ODF-MS-1U High Density Fiber Optic Patch Panel is a modular optical distribution frame designed for high-density fiber management in data centers, central offices, enterprise networks, and FTTx applications. Featuring a standard 1U 19-inch rack-mount design, the panel provides a compact, flexible, and scalable platform for fiber termination, cross-connection, and distribution while maximizing rack space utilization. It supports up to four MPO cassette modules, enabling a maximum capacity of 96 fiber connections within a single rack unit. Manufactured from high-strength cold-rolled steel with a durable electrostatic powder-coated finish, the patch panel delivers excellent mechanical strength and corrosion resistance for long-term operation in demanding telecommunications environments. The smooth sliding drawer design provides convenient front access for installation and maintenance, while adjustable mounting brackets, integrated cable fixing kits, and front cable management rings ensure efficient cable routing and protection. Designed for modern high-density optical networks, the AOP-ODF-MS-1U offers a reliable and cost-effective solution for structured fiber cabling, MPO migration, and high-capacity optical distribution. Its modular architecture simplifies future network expansion and supports rapid deployment in data centers, carrier networks, enterprise campuses, and broadband access infrastructures.
