AX1700 XGSPON OLT

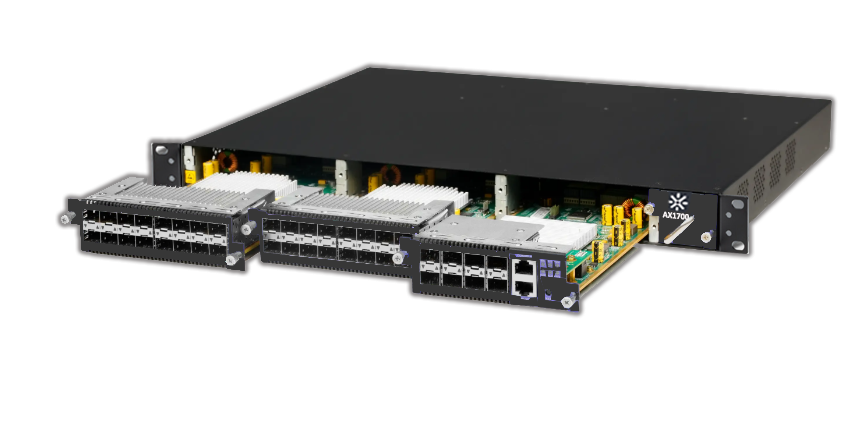

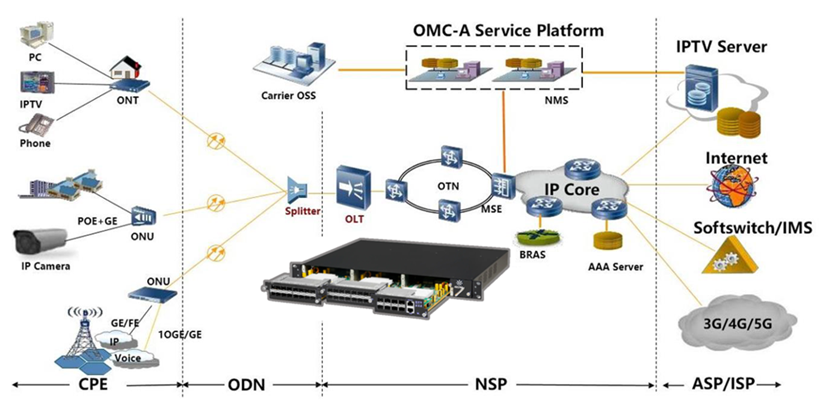

The AX1700 series is a modular pizza box platform supporting GPON, XGPON, XGSPON, and compliant with ITU-T G.984.X and G.9807.X standards. It delivers a complete 10Gbps optical last-mile solution for residential and business services. The AX1700 features a modular design with two service card slots for GPON or XGSPON combo and one management card slot, enabling flexibility and seamless upgrades. It supports up to 16 XG(S)PON & GPON combo PON ports in a compact 1RU form factor, offering high subscriber density and cost-effective deployment. Leveraging GPON technology, it provides a compelling alternative to traditional last-mile access solutions, reducing both initial and operational costs. Additionally, the AX1700 supports CLI, WEB, Telnet, and SSH for secure, efficient, and intelligent network management. This ensures stable, rapid, and streamlined operation and maintenance, significantly boosting overall network efficiency for users, enterprises, and operators.

GPON/XGSPON Function

          ·         Support OMCI protocol

          ·         T-CONT DBA

          ·         GEMPORT traffic

          ·         ONU auto discover

          ·         Ranging function

          ·         Downstream data encrypted



Layer 2 Switching Function

          ·         Access/Trunk/Hybrid L2 access mode

          ·         Support 64K MAC address

          ·         Support 4094 VLANs

          ·         VLAN filter function,VLAN transform

          ·         Smart QinQ

          ·         L2 port mirror

          ·         Support 1024 static MAC address

          ·         MAC address learning/aging

          ·         MAC address limitation

          ·         Static/Dynamic LACP

          ·         ACL

          ·         RSTP



Layer 3 Switching Function

          ·         Static routing

          ·         DHCP server/DHCP relay/DHCP snooping

          ·         ARP proxy



Multicast Function

          ·         IGMP snooping

          ·         IGMP V1/V2/V3

          ·         Multicast VLAN translation

          ·         Multicast QOS

          ·         IGMP protocol



QOS Guarantee

          ·         Traffic control function

          ·         Congestion avoidance function

          ·         Queue scheduling function

          ·         COS Priority function

          ·         ACL function



Reliability Function

          ·         1+1 power modules

          ·         BBU optional

          ·         Fan speed automatically adjusts based on temperature

          ·         Enables manual adjustment for primary and secondary power sources


Management Function

          ·         CLI/WEB/Telnet/SSH

          ·         Performance Management

          ·         Alarm Management

          ·         Security Management



Maintenance Function

          ·         Device log

          ·         Device upgrade

          ·         Fault diagnose function

          ·         Condition monitoring function



Parameter


Description

Hardware

Uplink Port


4*1G(SFP)/10G SFP+, 4*10G(SFP+)/25G(SFP28) or



2*1G(SFP)/10G (SFP +) 2*40G(QSFP+)/100G(QSFP28)

Management Port


1*100/1000BASE-Tx out-band Ethernet port

1*CONSOLE local management port

PON Port


4*GPON/8*GPON/16*GPON/24*GPON/32*GPON/8*XG(S)PON/

16*XG(S)PON combo

Note: AX1700 has two service card slots.


Physical Interface

SFP slot


Interface Protocol

GPON: ITU-TG.984.2

XGSPON: ITU_G.9807.x


Max Splitting Ratio

GPON: 1:128

XGSPON: 1:256

PON Port Attribute

Transmission Distance

20KM


Port Rate

GPON:      Downstream: 2.5Gbps

   Upstream:       1.25Gbps

XGSPON:  Downstream:  10Gbps

   Upstream:       10Gbps


Wavelength

GPON:     1490nm/1310nm

XGSPON: 1270nm/1577nm


Interface Type

SC/UPC


Fiber Type

9/125μm SMF (Single Mode Fiber)


Transmit

XGSPON&GPON combo

5 to 8dBm (9.953G)

3 to 7dBm (2.488G)


Receiving Sensitivity

XGSPON&GPON combo

≥-29dBm (9.953G)

≥-30.5dBm (2.488G)

≥-30dBm (1.244G)


Saturation Power

XGSPON&GPON combo

≤-8dBm (9.953G)

≤-10dBm (2.488G)

≤-12dBm (1.244G)

Power Supply

AC


100V to 240V

DC


-40V to -72V

Environment

Working Temperature

-15°C to 50°C

Storage Temperature

-40°C to 85°C

Ambient Humidity


5 to 90% (Non-condensing)

Mechanics

Management Rack


1U 19-inch standard chassis

Dimensions


440 * 375 * 44mm

Weight


6kg
