AON1110E Optical Receiver

AON1110E Series Optical Receiver is part of ACT’s Deep Fiber solution, which has been designed to deliver high- quality CATV and other advanced services. This cost- effective compact receiver helps operators expand the bandwidth of their existing HFC network while minimizing capital investment. The AON1110E compact node has smart LED, SNMP, and Web GUI for convenient management and is suitable for MDU, FTTB or FTTC applications with high output up to 110 dBµV. The AON1110E deep fiber node adopts advanced optical AGC control technique, the maximum AGC control range (adjustable) is -9 to +2 dBm. Combined with ACT’s converged headend AH1000 optical platform, AON1110E series deep fiber optical node is an ideal product to provide MSOs with an economical, flexible HFC access solution. AON1110E node provides the web management interface to support the remote monitoring capability in advanced network management system.

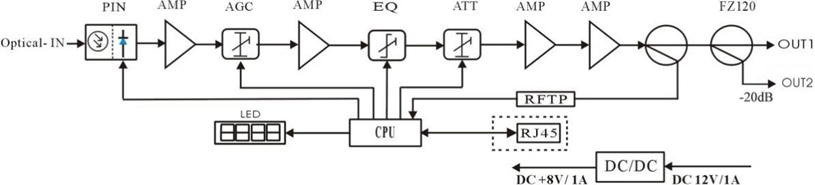

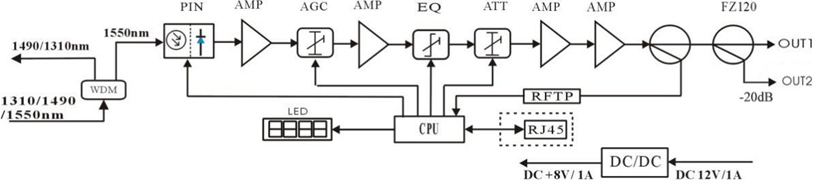

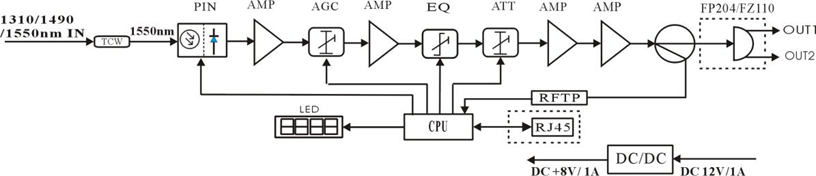

· Adopt advanced optical AGC control technique, the maximum AGC control range (adjustable) is－9 to＋2dBm

· RF amplifier part adopts the high performance low power consumption GaAs chip, which makes the output level higher

· EQ and ATT both use the professional electric control circuit, make the control more accurate, operation more convenient

· Built-in Ethernet transponder, support remote network management (optional)

· Compact structure, convenient installation, is the first choice equipment of FTTB CATV network

· External high reliability low power consumption power supply

Item	Unit	Technical Parameters
Optical Parameters
Receiving Optical Power	dBm	-9 to +2
Optical Return Loss	dB	>45
Optical Receiving Wavelength	nm	1100 to 1600 or 1530 to 1620
Optical Connector Type		SC/APC or FC/APC
Fiber Type		Single mode
Link Parameters
C/N	dB	≥ 51	42ch, OMI=4.0%, Pin=-2dBm,
C/CTB	dB	≥ 60	EQ=9dB,116dBuV@ FZ120 output,
C/CSO	dB	≥ 62	112dBuV@FP204 output.
RF Parameters
Frequency Range	MHz	45 to 862/1003
Flatness In Band	dB	±0.75 (Slope: 5.5±1dB)
Rated Output Level	dBμV	116 (FZ120)	112 (FP204)
Max Output Level	dBμV	118 (AGC:-7 to +2 tap)	114 (AGC:-7 to +2 two-way splitter)
Output Return Loss	dB	≥16
Output Impedance	Ω	75
Electrical Control EQ Range	dB	0 to 20 (0.5dB step)
Electrical Control ATT Range	dB	0 to 20 (0.5dB step)
General Characteristics
Power Voltage	V	DC12V/1A
Operating Temperature	°C	-40 to 60
Consumption	VA	≤8.5
Dimension	mm	178 (L) * 115 (W) * 40 (H)
