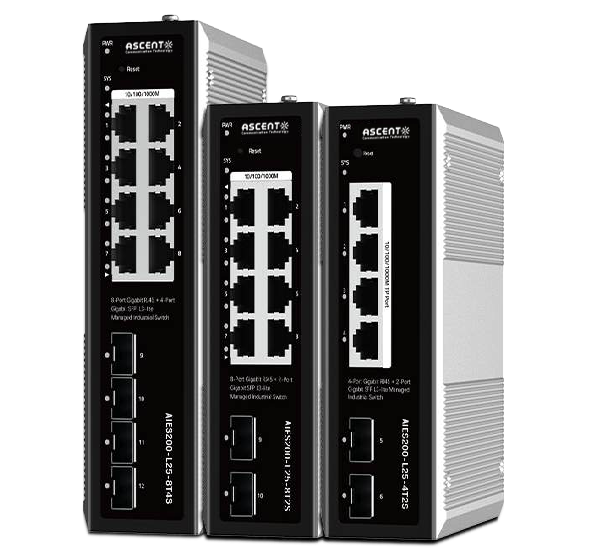

AIE200 L3 Lite Switch

ASCENT AIES200-L25 series is built on a new generation of high-performance industrial hardware and the robust BDROS platform, incorporating latest technology to deliver carrier-grade reliability. Designed for demanding industrial environments, the AIES200-L25 series supports ACL, QinQ, QoS, and static routing while offering wide-voltage dual power input through its standard DIN-rail metal enclosure. Engineered for mission-critical networks, AIES200-L25 adopts a highly reliable industrial Ethernet ring technology, enabling hardware-accelerated protection switching. The self-healing time per node is less than 5 milliseconds, and a full-ring recovery typically completes within 50 milliseconds—ensuring real-time service continuity. With enhanced EMC protection, anti-vibration and anti-shock design, and IP40 environmental hardening, the AIES200-L25 series is well suited for harsh industrial deployments. These capabilities make it a powerful platform for energy systems, transportation networks, industrial automation, environmental monitoring, and security or military applications, where long-term stability and rapid fault recovery are essential.

·       Lightning protection level: 6KV.IP40 protection, industrial fanless thermal conduction.DIN-rail aluminum alloy shell, which is compact and convenient

·       Supports node self-healing time less than 5 milliseconds, and ring network self-healing time less than 50 milliseconds (typical value)

·       Supports forming a selfhealing ring network between any two ports, and supports multiple independent self-healing rings

·       Provides a data packet loss protection mechanism for quickly recovering from failures

·       Provides hierarchical bandwidth services through rate limiting and traffic shaping in the layer-2 QoS function

·       Supports simple network management protocol (SNMP) and cloud-based operating platform (Pallas)

·       The mean time between failures exceeds 800,000 hours



Product Characteristics

Item

Unit

Description




AIES200-L25-4T2S

AIES200-L25-8T2S

AIES200-L25-8T4S

Gigabit Interface

RJ45


4

8

8


SFP


2

2

4

Console(RJ45)


1

1

1

Backplane

Gbps

20

20

56

Forwarding Rate

Mpps

9

15

18

Chassis

Dimensions

(WxDxH)

mm

138x108x51

138x108x51

164x107x51


Weight(Empty)

kg

0.6

0.6

0.6

Package

Dimensions

(WxDxH)

mm

245x190x60

245x190x60

245x190x60


Weight

kg

0.8

0.8

0.8

Power Consumption

No-Load

W

<12

<12

<12


Full-Load

W

18

18

20

Power Supply


Dual DC 12 to 55V (Pheonix) DC 12V (Jack)

Dual DC 12 to 55V (Pheonix)

DC 12V (Jack)

Dual DC 12 to 55V (Pheonix)

DC 12V (Jack)

Total Output BTU (1000BTU/H=293W)


61.43

61.43

68.26

MTBF(H)


>800,000

>800,000

>800,000

Forwarding Mode


Store-Forward

Store-Forward

Store-Forward

Flash

MB

16

16

16

DRAM

MB

128

128

128

MAC

K

8

8

8

Buffer Size

MB

4.1

4.1

4.1

Jumbo Frame

K

9

9

9

Total SVI


10

10

10


Features

Item

Description

VLAN



4K VLAN entries

GVRP

QinQ

Private VLAN

Voice VLAN

Ring Protection

802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)

BPDU protection, root protection and ring protection

EAPS

G.8032 ERPS

Multicast

MVR

IGMP Snooping

IGMP Fast Leave

Multicast group policy and multicast number limit

IP Routing

Static route

RIP, OSPF

128 routing table

QoS





CAR traffic control

802.1P/DSCP priority remark

Multiple queuing algorithms such as SP, WRR or SP+WRR

IP ACL/ANY/VLAN/COS

DSCP/IP Preference based QoS

Traffic supervision and traffic shaping

Drop,Redirect

Security

Identification and filtering of L2/L3/ L4-based ACL

Suppression of broadcast, multicast and unknown unicast packet

Port isolation

Port security, IP+MAC+port binding

DHCP sooping, DHCP option82

IEEE 802.1x authentication

Radius and TACACS+

Command line hierarchical protection

DHCP

DHCP Server/Client/Relay

DHCP Snooping

Reliability

Static/LACP LAG

Ethernet OAM

ISSU

Backup-link

VRRP

Management and Maintenance

Console, Telnet, SSH 2.0

Zero Touch Provisioning (ZTP)

HTTP/HTTPS

SNMP v1/v2/v3

Upload and download files through TFTP/FTP

Remote Network Monitoring (RMON)

Syslog

SPAN, RSPAN

IPv6

ICMPv6, DHCPv6, ACLv6, IPv6 Telnet

IPv6 Neighbor Discovery

Path MTU Discovery

MLD Snooping

ACL

VLAN ACL

L2 to 4 ACL

IPv4, IPv6 ACL
