RON1512B RFoG ONU

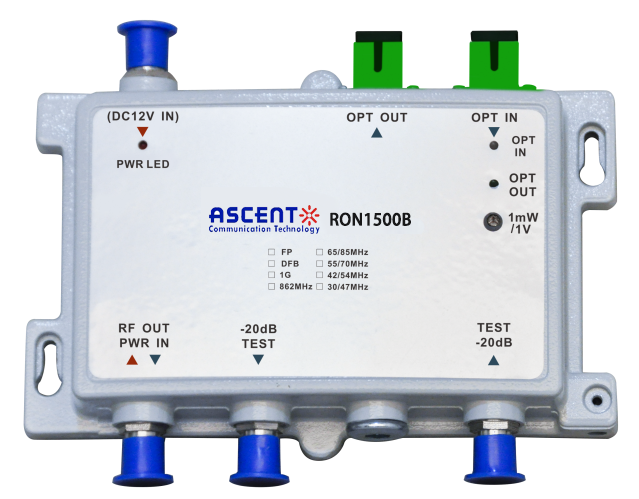

The ACT RON1500B Series is a cost-effective, high-performance RFoG optical network unit (ONU) designed and optimized for standards-compliant RFoG Fiber-to-the-Home (FTTH) networks. It enables cable operators to maximize their existing HFC infrastructure investment while continuing to deliver DOCSIS-based Internet, telephony, and Video-on-Demand services over fiber. As part of ACT’s comprehensive FTTx solution suite, the RON1512 optical node supports 1550 nm forward-path RF transmission and return-path upstream signals at multiple CWDM wavelengths in a 1×32 split FTTH topology. The unit features a low-noise optical receiver and an isolated DFB laser transmitter for stable upstream modulation from set-top boxes (STBs) or DOCSIS modems. An optional PON upgrade port allows seamless convergence with next generation PON systems, providing multiple-system operators (MSOs) with a flexible migration path toward next-generation PON-based FTTH deployments. Designed for bidirectional HFC applications, the RON1500B integrates optical transmit and receive paths over a single fiber, effectively minimizing return-path noise and ensuring high-reliability signal transmission for modern CATV broadband networks.

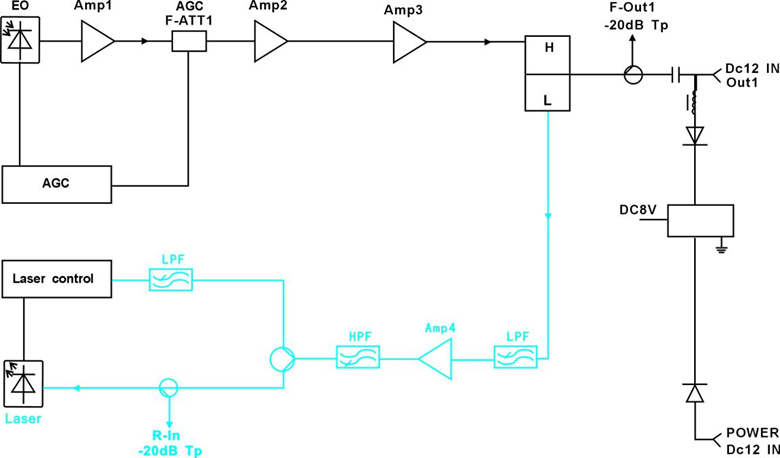

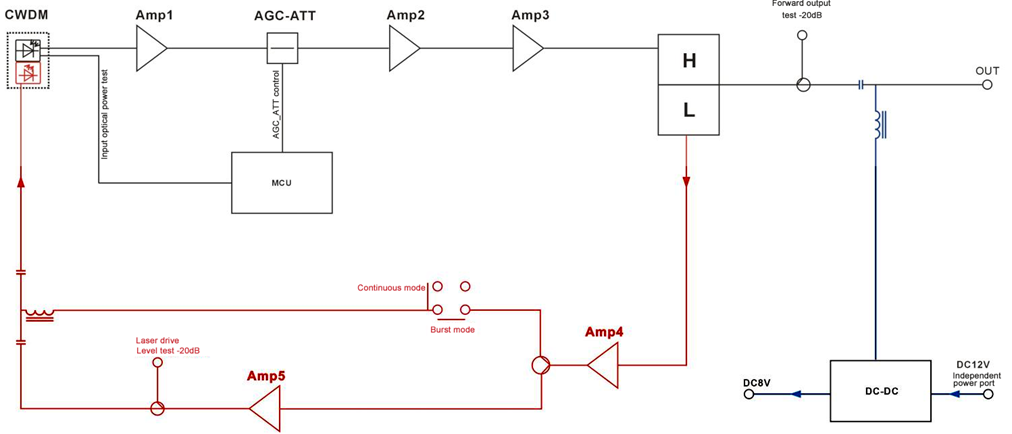

· Excellent AGC characteristic, when the AGC range is -8 to 0dBm, the output level remain unchanged, CTB and
CSO basically unchanged.
· Optimizing circuit design, SMT production process, optimizing the whole signal path, makes the
photoelectronic signal transmission more stable, RF linear indicators higher.
· Professional RF attenuator circuit, with good attenuation linear and high precision.
· GaAs amplifier device, with good index, low distortion and high reliability.
· The shell adopts aluminum die casting, cooling effect is good and the appearance is exquisite.
· The turning on mode of reverse laser can be set to continuous mode or burst mode.
Item | Unit | Technical Parameters | ||
Forward Optical Receiver | ||||
Optical Parameters | AGC Range | dBm | -8 to 0 | |
Optical Return Loss | dB | > 45 | ||
Optical Receiving Wavelength | nm | 1550+/-10 | ||
Optical Connector Type | SC/APC | |||
Optical Fiber Type | Single mode | |||
Link Performance | C/N | dB | ≥ 51 (Pin= -1dBm) | |
C/CTB | dB | ≥ 62 | @Pin=-8dBm, 42ch, OMI 3.5% | |
C/CSO | dB | ≥ 64 | ||
RF Parameters | Frequency Range | MHz | 54 to 1218 | |
Flatness in Band | dB | ±0.75 @-3dBm | ||
Rated Output Level | dBμV | ≥ 92 | ||
Max Output Level | dBμV | ≥ 92 | ||
Output Return Loss | dB | ≥16 | ||
Output Impedance | Ω | 75 | ||
Reverse Optical Transmiter | ||||
Optical Parameters | Laser ON/OFF | sec | <1.3 | |
Optical Transmit Wavelength | nm | 1310 or other standard CWDM wavelengths | ||
Laser Type | - | DFB laser | ||
Optical Output Power | dBm | 0.1 to 0.4 | ||
Optical Connector Type | - | SC/APC | ||
Laser Mode | - | Continuous mode or burst mode | ||
Optical Power (Laser Turns Off) | dBm | -24 to -26 | ||
RF Parameters | Level (Laser Turns Off) | dBuV | OFF: 58±1.5 | |
Level (Laser Turns On) | dBuV | ON: 68±1.5 | ||
Frequency Range | MHz | 5 to 42 | ||
Flatness in Band | dB | ±0.75 | ||
Input Return Loss | dB | ≥ 16 | ||
Output Impedance | Ω | 75 | ||
NPR Dynamic Range | dB | >35 dB (Input range >15dB) | ||
ESD | KV | 2 (RF port) | ||
Operating Temperature | °C | -20 to +55 | ||
Storage Temperature | °C | -30 to +70 | ||
Relative Humidity | % | Max 95% no condensation | ||
Consumption | W | ≤6.5 | ||
Dimension | mm | 154(L) x 116(W) x 26(H) | ||
