AP204C AX1500 XPON ONU

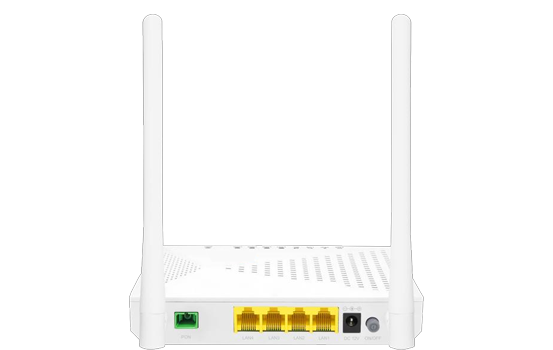

The AP204C Series Wi-Fi 6 XPON ONU is a next-generation fiber broadband gateway designed for high-speed FTTH and FTTx deployments. Combining dual-mode GPON/EPON access, four Gigabit Ethernet ports, and AX1500 dual-band Wi-Fi 6 connectivity, the AP204C delivers reliable Gigabit broadband services for residential and small business users. The ONU automatically adapts to GPON or EPON networks and offers seamless interoperability with major OLT vendors, providing operators with a flexible and future-ready broadband access solution. The AP204C integrates one XPON optical interface, four 10/100/1000Mbps Ethernet ports, and dual-band Wi-Fi 6 technology supporting 802.11ax on 5GHz and 802.11n on 2.4GHz, delivering aggregate wireless speeds of up to 1500Mbps. Advanced features including Dynamic Bandwidth Allocation (DBA), VLAN management, QoS, IGMP Snooping/Proxy, firewall protection, and AES encryption ensure efficient bandwidth utilization, enhanced security, and superior user experience for Internet, IPTV, and multimedia services. Designed for carrier-grade reliability and simplified network operation, the AP204C supports ONU auto-discovery, remote provisioning, software upgrades, SNMP-based management, and multiple authentication methods including SN and LOID+Password. Its compact desktop design, low power consumption, and powerful wireless performance make it an ideal solution for operators seeking to deliver next-generation fiber broadband and whole-home connectivity services.
