AIE2000-T L3 Switch

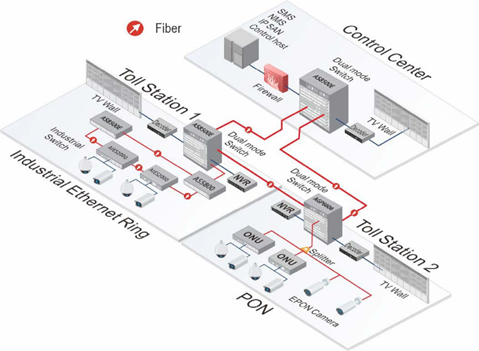

ASCENT AIES2000-T series is built on a high-performance industrial hardware and the BDROS software platform, to deliver rich Layer-2/Layer-3 routing and advanced industrial ring networking capabilities. The AIES2000-T adopts a die-cast aluminum enclosure with a standard 19-inch rack-mount design and provides redundant wide-voltage industrial power inputs, ensuring high durability and deployment flexibility in harsh field environments. With hardware-accelerated industrial Ethernet ring protection, the AIES2000-T series achieves rapid recovery performance—node-level self-healing within 5 milliseconds and ring-level convergence typically under 50 milliseconds. This enables continuous service availability for latency-sensitive industrial and mission-critical networks. The fanless, low-power design of the AIES2000-T series, combined with wide-temperature and wide-voltage support, meets strict EMC, anti-vibration, and shock-proof requirements. Its IP40-rated protection and robust reliability make it suitable for deployment in energy systems, transportation infrastructure, industrial automation, environmental monitoring, and defense-related applications where long-term operational stability is essential.

· Lightning protection level: 6KV

· IP40 protection, industrial fanless thermal conduction

· Supports dual 220V wide-voltage industrial power input (DC model is optional)

· Business ports, management ports, power input terminals, and relay alarm output are located on the front panel, complying with industrial operation specifications

· Supports STP/EAPS/ERPS

· Supports node self-healing time less than 5 milliseconds, and ring network self-healing time less than 50 milliseconds (typical value)

· Supports layer-3 static routing, dynamic routing (RIP, OSPF), Virtual Router Redundancy Protocol(VRRP)

· Supports virtual stacking

· Supports to form a self-healing ring between any two ports, and supports multiple independent self-healing rings

· Provides Data Leakage Prevention (DLP), to quickly recover from network failures

· Supports simple network management protocol (SNMP) and cloud-based operating platform(Pallas)

· The mean time between failures (MTBF): more than 800,000 hours

Product Characteristics

Item		Unit	Description
Gigabit Interface
RJ45			16
SFP			4
10G/GE SFP+			4
Console (RJ45)			1
Backplane		Gbps	128
Forwarding Rate (With 64 Bytes)		Mpps	90
Chassis	Dimensions (WxDxH)	mm	170x140x100
Chassis	Weight(Empty)	kg	2.2
Package	Dimensions (WxDxH)	mm	300x195x145
Package	Weight	kg	2.4
Power Consumption	No-Load	W	13.5
	Full-Load	W	31
Power Supply		V	Dual AC or DC 100 to 240
Total Output BTU (1000BTU/H=293W)			105.8
MTBF(H)			>800,000
Operating Temperature		°C	-40 to 75
Forwarding Mode			Store-forward
Flash		MB	16
DRAM		MB	256
MAC		K	16
Buffer Size		MB	12
Jumbo Frame		K	9
Total SVI			64

Features

Item	Description
VLAN	4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN, Voice-VLAN
Spanning Tree	802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP) BPDU guard, root guard and loopback guard
Multicast	IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter
IP	Static route, RIP, OSPF IPv4/v6 dual stack
Ipv6	ICMPv6, DHCPv6, ACLv6 and Telnet IPv6 neighbor discovery, Path MTU discovery MLD V1, MLD snooping IPv6 Static Routing, RIPng, OSPFv3 Manual tunnel, ISATAP tunnel, 6 to 4 tunnel
QoS	CAR, HQoS, MAC/IP/TCP/UDP/ VLAN/ COS/ DSCP/ TOS based QoS, 802.1P/ DSCP priority re-labeling, SP, WRR, and “SP+WRR”, Tail-Drop, WRED, ﬂow monitoring and traffc shaping
Security	Port isolation, Port security, and “IP+MAC+port” binding, MAC sticky DAI & IP source guard, PPPoE+ IEEE 802.1x, AAA, Radius and BDTacacs+ L2/L3/L4 ACL ﬂow identiffcation and Port security, IP+MAC+port binding ffltration Anti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc Broadcast/multicast/unknown unicast storm-control MD5, SHA-256, RSA-1024, AES256, etc
Virtualization	ASCENT Virtual Stacking System (BVSS) Up to 16 stacking units
DHCP	DHCP server/relay/client DHCP snooping/option82
Reliability	Static/LACP link aggregation, Interface backup EAPS and ERPS ISSU uninterrupted system upgrade BVSS, ups to 16-units per stack VRRP UDLD
Management	Console, Telnet, SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3, RMON TFTP, FTP, SFTP NTP ZTP SPAN, RSPAN
Environment	Operating Temperature/Humidity: -40 to 85°C, 10%-90% non-condensing Storage Temperature/Humidity: -40 to 85°C, 5%-95% non-condensing
Accessories	Power cord, rackmount kits, console cable
