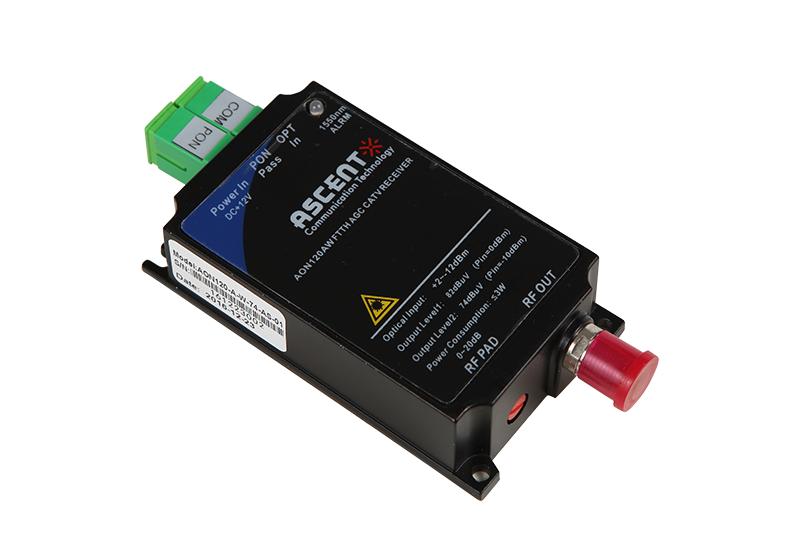

AON121 Series FTTH mini node supports Video Overlay application over FTTH optical fiber access network. It operates on 1218MHz RF bandwidth, with high output power up to 83 dBµV (AGC). AON121 has low power consumption and optional built-in WDM to support PON signal pass-through. It is part of ACT Deep Fiber and FTTH solution, which helps operators provide superior video services in a FTTH PON network architecture.
· 1002 or 1218 MHz RF Spectrum for superior video services
· Small form factor and low power consumption
· Low noise circuit (3.5 % modulate, -10 dBm receive, CNR ≥ 42dB)
· High output power up to 83 dBµV for MDU application
· Excellent linearity at wider optical receiving range +2 dBm to -20 dBm
· Flatness less than ±1.0 dB in the range of 47 MHz to 1218 MHz
· Metal shell, supply safeguards to opto-electrical sensing device
· Optional built-in WDM provides PON pass-through capability in a FTTH optical passive network
· Powered directly using the power adaptor
· The compact enclosure fits easily in CPE, ONU housing or network termination boxes
Downstream Specifications (Receiver) | |
CATV Wavelength Range PON Pass Wavelength | 1540 nm to 1560nm(with WDM filter) 1310/1490nm |
Optical Input Power | -20 dBm to +2 dBm (AGC: -10dBm to 0 dBm) -10dBm to 0 dBm (1550 nm LED Green) >0 dBm (1550 nm LED Red Flash) <-10 dBm or no input power (1550 nm LED stay Red) |
Optical Return Loss WDM IL(optional) | 45 dB (typ.) <-0.8dB |
Responsivity | ≥ 0.9 A/W @ 1550 nm |
RF Bandwidth | 47 MHz to 1002 MHz, 1218 MHz |
Output Level | 83dBµV @ -10 dBm to 0 dBm (AGC) |
Output Level Adjustment | 0 dB to 20dB |
RF Flatness | ±1.0dB (47 MHz to 1218MHz) |
RF Return Loss | ≥14 dB |
RF Input Impedance | 75 Ω |
RF Connector | F-Female |
Link Performance | |
CNR | 42.0 dB (-10 dBm input, 96 NTSC, +3.5% OMI) |
CTB | -57 dBc |
CSO | -57 dBc |
MER | 38 dB (-10 dBm input, 96 NTSC) |
General Specifications | |
Optical Connector | SC/APC, SC/UPC, LC/PC |
Operating Temperature | -20 °C to 50 °C |
Storage Temperature | -40 °C to 85 °C |
Power Supply | +12 V DC |
Operating Relative Humidity | 5 % to 95 % |
Power Consumption | ≤2 W |
Dimensions (W × D × H) | 48 mm × 88 mm × 22 mm |
Weight | 0.4 kg |
Ship Weight | 5 kg (Packed in carton boxes of ten units) |
