LCD KVM with IP Remote Access

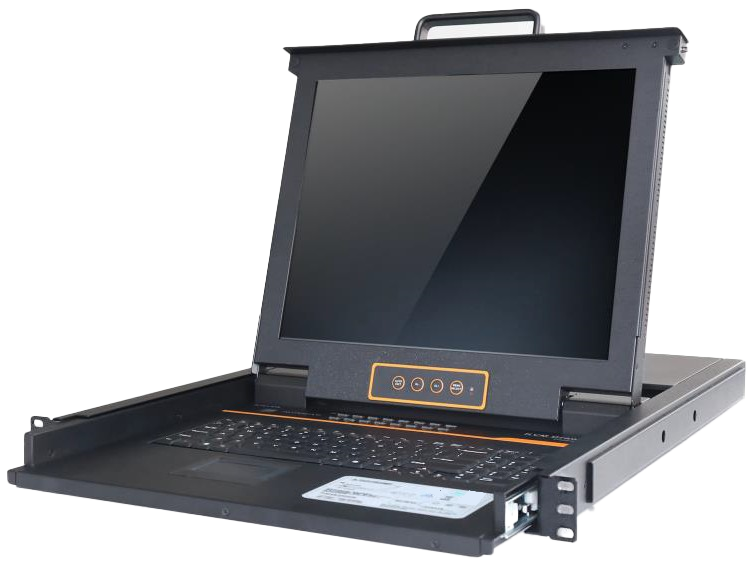

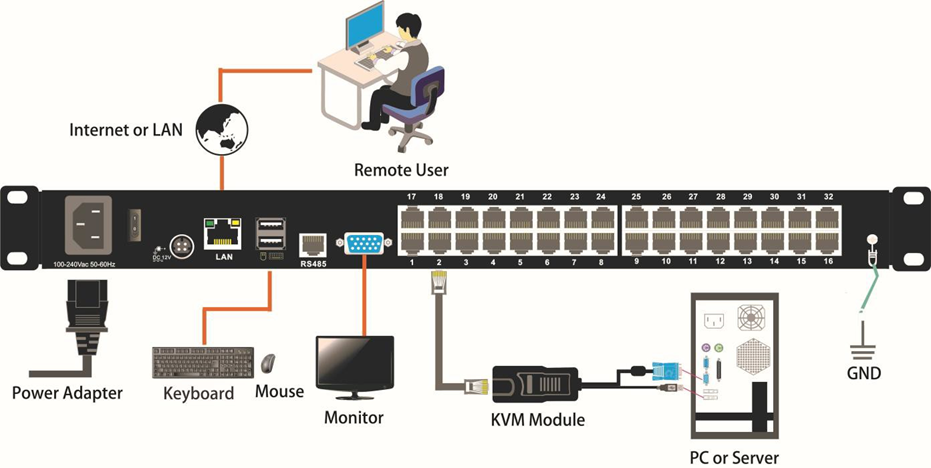

Featuring an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable housing, Ascent's KVM1700 series LCD KVM over IP Switch is a control unit that allows secure access to 8 / 16 / 24 / 32 computers from a single KVM console. The KVM1700 features IP-based connectivity that allows local and remote operators to monitor and access the computers. With TCP/IP communications protocol, the KVM1700 series can be accessed from any computer on the LAN, WAN or Internet. It’s easy to set up the KVM1700 series, just plug the cable into the appropriate port, no software needed, no complicated installation procedures, and no compatibility issues. Connect computers with compact RJ-45 connectors and Cat 5e/6 cable, transmitting distance is up to 100m.

· Control up to 8 / 16 / 24 / 32 computers

· Support 1 local user and 2 remote users, port share mode allows local and remote users to gain access to a server simultaneously

· Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons

· Support servers with VGA/DVI/HDMI port

· Multiplatform client support (Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu)

· Local Console, Browser, and AP GUIs offer a unified Multilanguage interface

· Local resolution is up to 1280 x 1024

· Support mouse synchronization mode-automatically synchronizes the local and remote mouse movements

· Video synchronization with local console – EDID information for local console display can be stored in the host module for video resolution optimization

· Keyboard and mouse emulation to ensure the normal booting

· Auto scan feature for monitoring user-selected computer

· Hot pluggable – add or remove computers without having to power down the switch

· Adaptive 10 / 100 / 1000 Mbps network

· WEB browser-based or KVM Clients remote management

· BIOS-level access

· Video quality and video tolerance can be adjusted to optimize data transfer speed, up to 30 FPS

· Full screen or scalable video display

· Remote users and local users can control the same server synchronously

· Support AES / DES / 3DES encryption

· Support audit function-allows the administrator to audit the device through the system log and operation log

· Exit Macros support

· Configurable user and group permissions for server access and control

· Message Board for communication among remote users

· Support firmware upgrade

Model		KVM1708	KVM1716	KVM1724	KVM1732
Computer Connections	Direct	8	16	24	32
	Max	8	16	24	32
Port Selection		Pushbutton, UI interface, Web
LCD Monitor	Model	SXGA TFT
	View Area	17”
	Optimum Resolution	1280×1024@60Hz
	Color	16.7 M
	Brightness	250 cd/m² (Typ)
	Contrast Ratio	1000 : 1 (Typ)
	Pixel Pitch	0.264(H) mm × 0.264(W) mm
Mouse	X/Y Resolution	>1000 points / inch, (40 points/mm)
	Trackball	Supports trackball function
Keyboard		99 keys (82 keys main keyboard +17 independent number pad)
Remote	Remote Control	KVM Control (ActiveX Control)
	Management	Web
	Security	DES Encrypted
	Resolution	1920×1080@60Hz
Power Input		100V to 240V AC , 50 to 60 Hz , <1.5 A
Power Consumption		19W	21W	25W	25W
Operating Temperature		0 to 40 °C
Store Temperature		-20 to 60 °C
Humidity		0 to 80% RH, non-condensing
Net Weight		13kg	13kg	13kg	13kg
Product Dimension (W × D × H)		448mm × 581mm × 42.5mm
Package Dimension (W × D × H)		765mm × 615mm × 185mm
