Optical Passive CWDM

ACT offers a complete line of DWDMs, CWDMs, WDMs, OADMs, Couplers, DCM, Optical Shelf and Accessories. The Wavelength Division Multiplexers (WDMs) feature low insertion loss, high isolation and excellent wavelength stability. The CWDM/DWDMs are designed to multiplex (mux) or de-multiplex (demux) optical signals in full optical spectrum with CWDM/DWDM multiple channels at an ITU standards ITU-T defined spacing. It comes as different form factor packages, 1RU 19” rack-mount chassis, standard LGX modules or flat box assemblies. ACT also developed special range of WDM units which are suitable for HFC, FTTx (P2P, P2MP), RFOG (Radio Frequency over Glass) applications, permitting DOCSIS and HFC to operate over a EPON/GPON compliant Passive Optical Network (PON) as commonly deployed for Fibre to the Home (FTTH) developments solution in high density FTTX networks to bring the video services to business and home premises.

·       Cost-effective Full Line of Optical Passives and Accessories

·       WDM/CWDM/DWDM/OADM, Optical Coupler, Attenuator etc.

·       ITU G.694 standard compliant

·       Excellent Wavelength Stability

·       High Port Isolation, low Insertion Loss

·       Customization option available

·       SC/APC, LC/UPC, LC/APC, FC/APC and E2000/APC connectors available.

·       Optional 1311 nm port for forward path transmission to HFC nodes

·       Either single port or with internal splitter to match number of CWDM ports for feeding multiple HFC nodes over one fibre

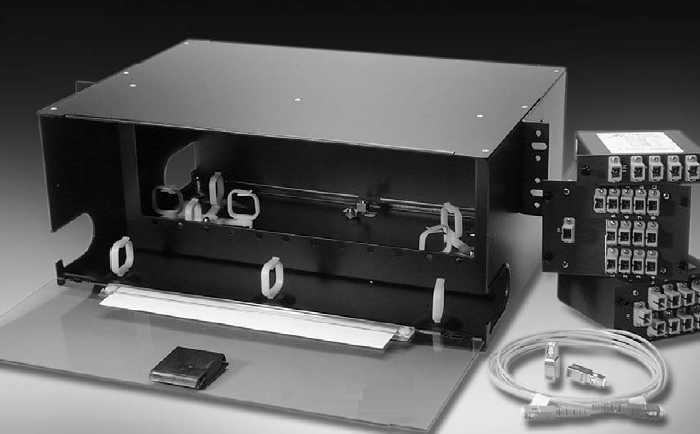

·       Options for assembly into 19” sub-racks, LGX chassis, or flat box, ready for deployment.

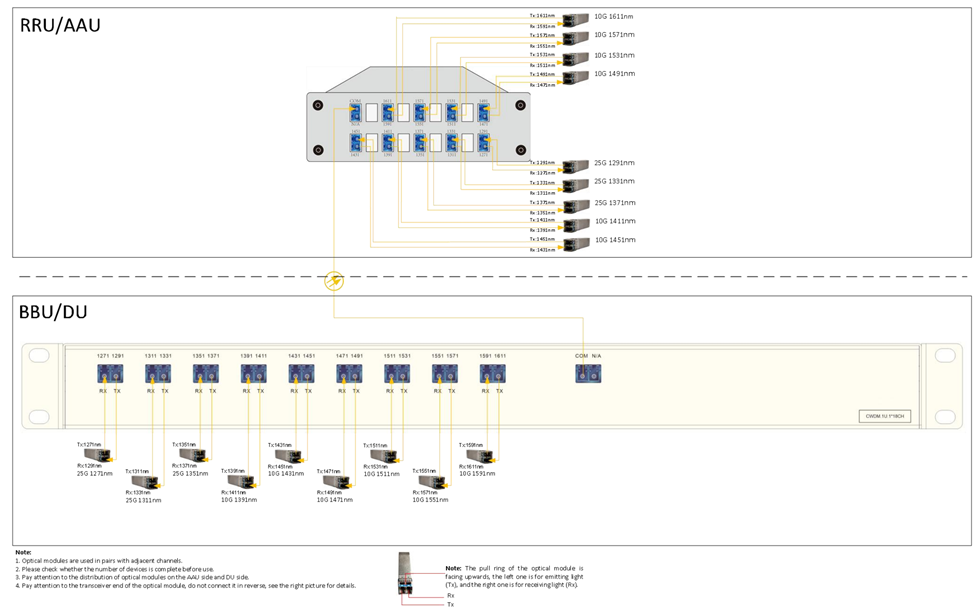

Single Fiber CCWDM Indoor Unit (Connect to BBU)

Items

Specifications

Note

Number of Channel

18


Central Wavelength

Ch 1-Tx: 1271 nm; Ch 1-Rx: 1291 nm

Ch 2-Tx: 1311 nm; Ch 2-Rx: 1331 nm

Ch 3-Tx: 1351 nm; Ch 3-Rx: 1371 nm

Ch 4-Tx: 1391 nm; Ch 4-Rx: 1411 nm

Ch 5-Tx: 1431 nm; Ch 5-Rx: 1451 nm

Ch 6-Tx: 1471 nm; Ch 6-Rx: 1491 nm

Ch 7-Tx: 1511 nm; Ch 7-Rx: 1531 nm

Ch 8-Tx: 1551 nm; Ch 8-Rx: 1571 nm

Ch 9-Tx: 1591 nm; Ch 9-Rx: 1611 nm


Function

Mux/ Demux


Filter Technology

CCWDM


Passband from CCWDM Filter to Center Wavelength (nm)

± 6.5


Channel Spacing (nm)

20


Insertion Loss (dB)

≤ 2.2


Isolation Adjacent (dB)

≥ 30


Isolation Non-Adjacent (dB)

≥ 45


PDL (dB)

< 0.2


PDM (ps/nm)

< 0.1


Channel Passband Ripple (dB)

< 0.5


Directivity (dB)

> 50


Return Loss (dB)

> 45


Connectors

LC/UPC


Maximum Power Handling (mW)

500


Operating Temperature (°C)

-5°C to +70°C


Storage Temperature (°C)

-40°C to +85 °C


Compliance

ITU-T G.694.2, CE, RoHS


Protection Class

IP25


Casing Material

Metal, powder coated


Size

440*220*44mm - Rack 19”


Single Fiber CCWDM Outdoor (Connect to RRU)


Items

Specifications

Note


Number of Channel

18



Central Wavelength

Ch1-Tx: 1291nm; Ch1-Rx: 1271nm

Ch2-Tx: 1331nm; Ch2-Rx: 1311nm

Ch3-Tx: 1371nm; Ch3-Rx: 1351nm

Ch4-Tx: 1411nm; Ch4-Rx: 1391nm

Ch5-Tx: 1451nm; Ch5-Rx: 1431nm

Ch6-Tx: 1491nm; Ch6-Rx: 1471nm

Ch7-Tx: 1531nm; Ch7-Rx: 1511nm

Ch8-Tx: 1571nm; Ch8-Rx: 1551nm

Ch9-Tx: 1611nm; Ch9-Rx: 1591nm



Function

Mux/ Demux



Filter Technology

CCWDM



Passband from CCWDM Filter to Center Wavelength (nm)

± 6.5



Channel Spacing (nm)

20



Insertion Loss (dB)

≤ 2.2



Isolation Adjacent (dB)

> 30



Isolation Non-Adjacent (dB)

≥ 45



PDL (dB)

< 0.2



PDM (ps/nm)

< 0.1



Channel Passband Ripple (dB)

< 0.5



Directivity (dB)

> 50



Return Loss (dB)

> 45



Connectors

LC/UPC



Maximum Power Handling (mW)

500



Operating Temperature (°C)

-5°C to +70°C



Storage Temperature (°C)

-40°C to +85 °C



Compliance

ITU-T G.694.2, CE, RoHS



Protection Class

IP55



Casing Material

Plastic, equipped with a security lock
