AOP 1x16 WDM Splitter

ACT offers complete range of Wavelength Division Multiplexers (WDM) units which are suitable for HFC, FTTx (P2P, P2MP), RFOG (RF over Glass) applications. The specially packaged WDM device allows Analog Video signals to operate over a EPON/GPON compliant Passive Optical Network (PON) as commonly deployed for Fibre to the Home (FTTH) development. The PON WDM solution is widely used in high density FTTX networks to bring the video services to business and home premises. ACT also provides line of DWDMs, CWDMs, WDMs, OADMs, Couplers, DCM, Optical Shelf and Accessories. The WDMs feature low insertion loss, high isolation and excellent wavelength stability. The CWDM/DWDMs are designed to multiplex (mux) or de-multiplex (demux) optical signals in full optical spectrum with CWDM/DWDM multiple channels at an ITU standards ITU-T defined spacing. It comes as different form factor packages, 1RU 19” rack-mount chassis, standard LGX modules or flat box assemblies.

·  Full Line of Optical Passives and Accessories

·  WDM/CWDM/DWDM

·  Optical Splitters

·  Dispersion Compensation Module (DCM)

·  ITU G.694 standard compliant

·  Excellent Wavelength Stability

·  Cost Effective Solution

·  High Port Isolation

·  Low Insertion Loss

·  Flexibility for Customization

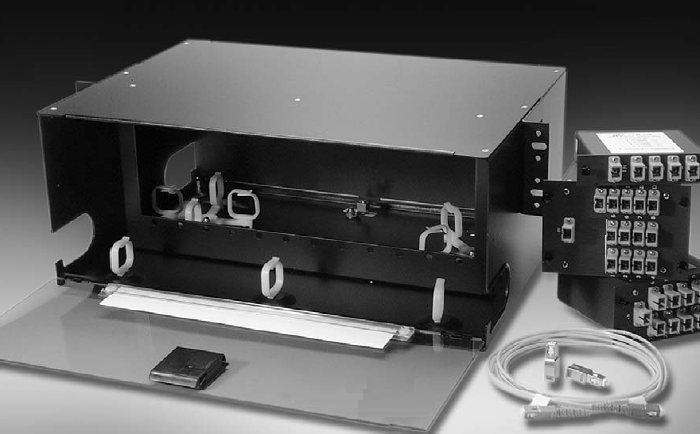

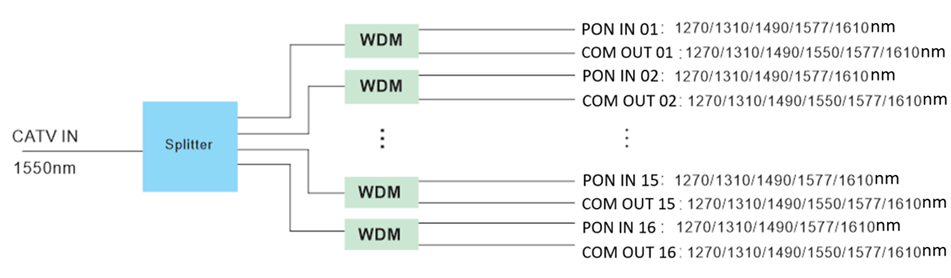

19” Rack Mount Optical Splitter with WDM

Item

Unit

Description

Operation Wavelength

Common

nm

1260 to 1620

CATV Band

nm

1540 to 1560

Reflect Band (PON)

nm

1260 to 1360, 1480 to 1500, and 1575 to 1620

Channels (PON +COM)

1-way

8-way

16-way

24-way

32-way

64-way

Typical Insertion Loss

CATV -COM

dB

1.0

11.8

15.2

17.5

18.4

21.4

COM-PON

dB

1.0

1.0

1.0

1.0

1.0

1.0

Uniformity

dB

1.9

1.9

1.9

1.9

1.9

2

Polarization Dependent Loss

dB

≤0.5

RF Bandwidth

MHz

47 to 1003

Adjacent Channel Isolation

CATV -COM

dB

≥30

PON-COM

dB

≥15

Return Loss / Directivity

dB

≥50

Operating Temperature

°C

-10 to +70

Storage Temperature

°C

-40 to +85

Operating Relative Humidity

%

5 to 95

Package Dimensions (H×W×D)

mm

19” 1U rack (44 × 483 × 250)

Fiber Type


SMF-28e

Dimensions (W×D×H)

mm

1RU: 470 × 225 × 44

2RU: 470 × 225 × 88

Typical Connector Type



CATV


SC APC (LC/APC)

PON


LC APC (MPO/APC)

COM


LC APC (SC/APC)

Note: Above specifications are for devices without connectors.
