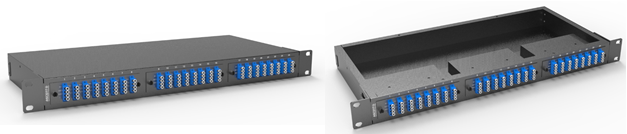

Optical Passive 1x2

ACT offers a complete line of DWDMs, CWDMs, WDMs, OADMs, Couplers, DCM, Optical Shelf and Accessories. The Wavelength Division Multiplexers (WDMs) feature low insertion loss, high isolation and excellent wavelength stability.

•    Full Line of Optical Passives and Accessories

•    WDM/CWDM/DWDM

•    Optical Splitters

•    Support 1/10/100 GE

•    ITU G.694 standard compliant

•    Excellent Wavelength Stability

•    Cost Effective Solution

•    High Port Isolation

•    Low Insertion Loss

•    Flexibility for Customization


Optical Specification



Centre wavelength

1260 nm to 1350 & 1460 to 1620 nm


Configuration

1x2


Channel pass band

1300~1320 & 1540~1560nm


Insertion Loss

2.5/6.6 (70/30 Split )


Directivity

≥ 50 dB

Polarization Dependent Loss

<=0.1dB

Return loss

≥ 55 dB

Connectors

SC/APC, SC/PC, LC/APC, LC/UPC

Fiber Types

900um, 2mm, or 3mm

General Specifications



Operating Temp, °C

‑10  to 70


Storage Temp, °C

‑40 to 85


Operating relative humidity, %

5 to 95


Dimensions (W x D x H)

1RU


Weight, kg

Weight varies depending on model.
