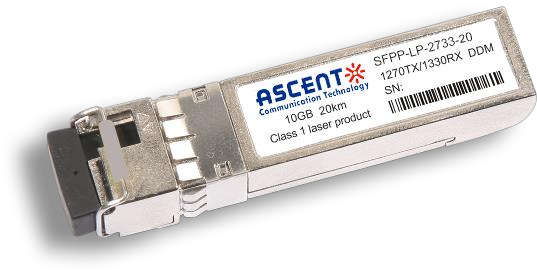

10G SFP+ CWDM 2733 20 km

Ascent’s SFP+ BIDI 10G 20 km transceivers are engineered for high-speed communication applications requiring data rates up to 11.3 Gb/s. Designed for single-fiber operation, they comply with the SFF-8472 SFP+ MSA and support transmission distances up to 20 km over standard G.652 single-mode fiber. The transceivers feature an enhanced digital diagnostic monitoring interface (DDMI) that provides real-time access to key operating parameters, including temperature, laser bias current, transmit power, receive power, and supply voltage. This enables precise link management and early detection of performance degradation. In addition, a built-in system of alarms and warning indicators alerts users when operating conditions deviate from factory-defined thresholds, ensuring stable, predictable performance in demanding network environments.

·       Support data rate up to 11.3Gb/s

·       Hot-Pluggable SFP Footprint and Single LC Connector

·       Up to 20km reach for G.652 SMF

·       1270nm DFB Transmitter and PIN receiver for SFPP-LP-2733-20

·       1330nm DFB Transmitter and PIN receiver for SFPP-LP-3327-20

·       Temperature Range:

      Commercial: 0°C to +70°C

      Industrial: -40°C to +85°C

·       Compliant with SFF-8431

·       Compliant with SFF-8432

·       Compliant with SFF-8472

·       Compliant with IEEE802.3ae


 Absolute Maximum Ratings

Parameter

Storage Temperature

Symbol

Ts

Min.

-40

Max.

85

Unit

°C

Maximum Supply Voltage

VCC

-0.5

3.6

%

Operating Relative Humidity

RH


95

V

 Recommended Operating Conditions

Parameter

Operating Case Temperature

Symbol

Top

Min.

0

Typ.



Max.

+70

Unit

°C

Note

Commercial



-40


+85

°C

Industrial

Power Supply Voltage

VCC

3.13

3.3

3.47

V


Data Rate

BR


10.3125

11.3

Gbps

Data Rate

Transmission Distance

TD



20

km


Coupled Fiber

Single-mode fiber

9/125 µm SMF

Electrical Characteristics (TOP = Tc, Vcc = 3.135 to 3.465 Volts)

Parameter

Symbol

Min.

Typ.

Max.

Unit

Notes

Supply Voltage

Vcc

3.135


3.465

V


Supply Current (Commercial)

Icc



300

mA


Supply Current (Industrial)

Icc



450

mA


Power Consumption (Commercial)

P



1.0

W


Power Consumption (Industrial)

P



1.5

W


Transmitter

CML Inputs(Differential)

Vin

150


1200

mVpp

1

Input Impedance(Differential)

Zin

85

100

115

ohm


TX_DIS Disable


2


Vcc+0.3

V


TX_DIS Enable


0


0.8

V


TX_FAULT Fault


2


Vcc+0.3

V


TX_FAULT Normal


0


0.5

V


Receiver

CML Outputs (Differential)

Vout

350


700

mVpp

1

Output Impedance (Differential)

Zout

85

100

115

Ohm


RX_LOS LOS


2


Vcc+0.3

V

2

RX_LOS Normal


0


0.8

V

2

MOD_DEF(0:2 ) VoH


2.5



V

With Serial ID

MOD_DEF(0:2 ) VoL


0


0.5

V

With Serial ID



Notes:

1.     CML logic, internally AC coupled.

2.     Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.

 Optical Characteristics

Parameter

Symbol

Min.

Typ.

Max.

Unit

NOTE

Data Rate



10.3125

11.3

Gbps


Transmitter

Center Wavelength

λ

1260

1270

1280

nm

SFPP-LP-2733-20

1320

1330

1340

nm

SFPP-LP-3327-20

Spectral Width (-20dB)

∆λ



1

nm


Side Mode Suppression Ratio

SMSR

30



dB


Average Output Power

Pout

-6


-1

dBm

1

Extinction Ratio

ER

3.5



dB


Average Power of OFF Transmitter

Poff



-30

dBm


Relative Intensity Noise

RIN



-128

dB/Hz

2

Wavelength Range

λc

1320

1330

1340

nm

SFPP-LP-2733-20



1260

1270

1280

nm

SFPP-LP-3327-20

Receiver Sensitivity

Pmin



-14.4

dBm

3

Receiver Overload

Pmax

0.5



dBm


LOS De-Assert

LOSD



-18

dBm


LOS Assert

LOSA

-30



dBm


LOS-Hysteresis

Phys

0.5


6

dB


Notes:

1.     Output is coupled into a 9/125um SMF.

2.     12dB reflection.

3.     Measured with worst ER, BER less than 1E-12 and PRBS 2A31-1 at 10.3125Gbps.

Timing Characteristics

Parameter

Symbol

Min.

Typical

Max.

Unit

TX_Disable Assert Time

t_off



100

us

TX_Disable Negate Time

t_on



2

ms

Time to Initialize Include Reset of TX_FAULT

t_int



300

ms

TX_FAULT from Fault to Assertion

t_fault



100

us

TX_Disable Time to Start Reset

t_reset

10



us

Receiver Loss of Signal Assert Time

Ta,RX_LOS



100

us

Receiver Loss of Signal Deassert Time

Td,RX_LOS



100

us

Rate-Select Chage Time

t_ratesel



10

us

Serial ID Clock Time

t_serial-clock



100

kHz



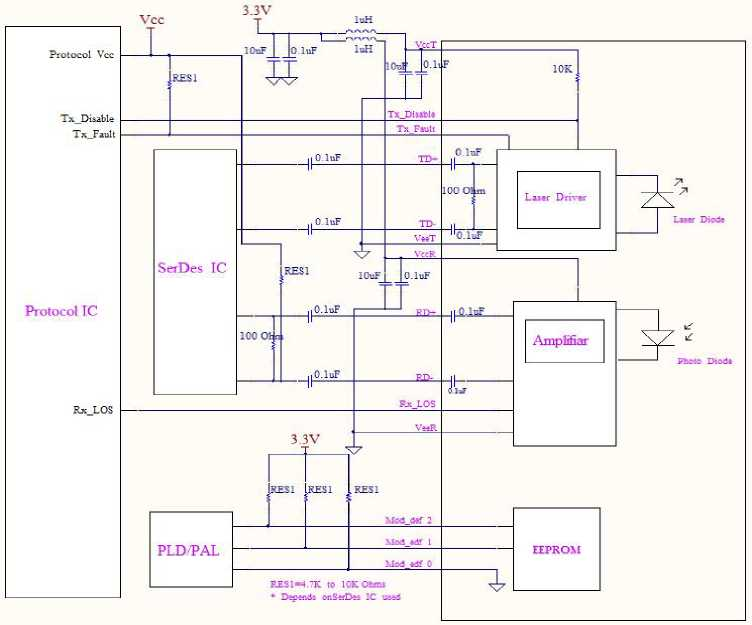

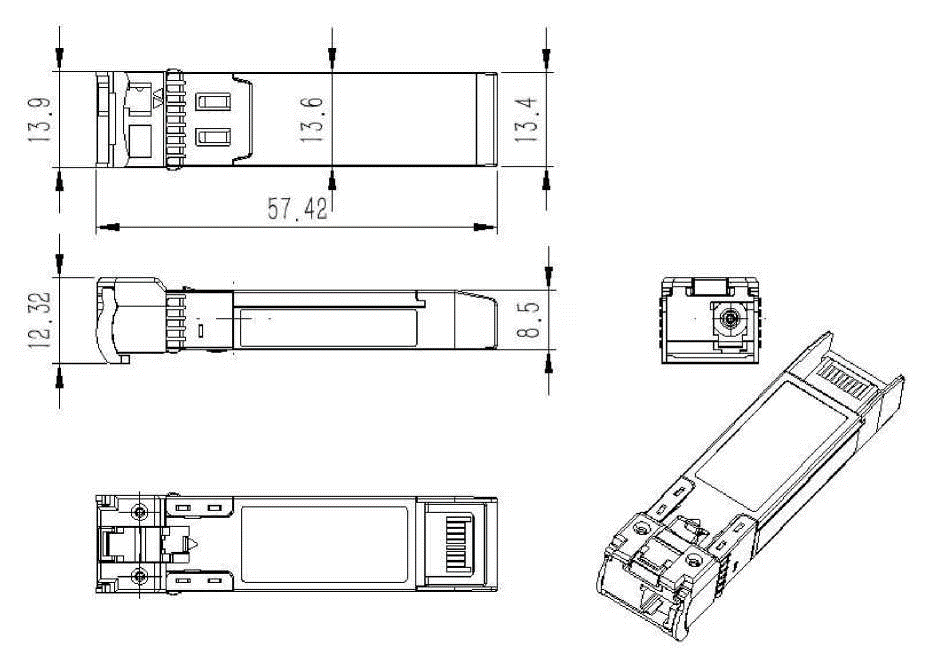

Series Recommendation
