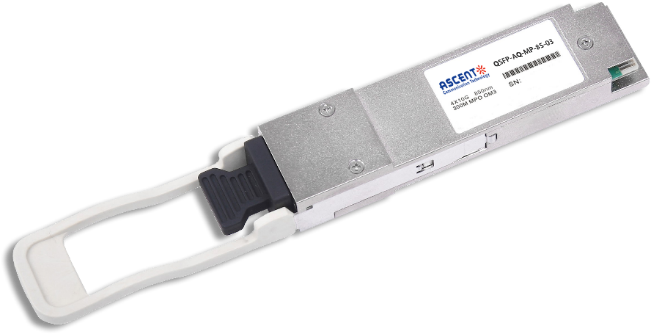

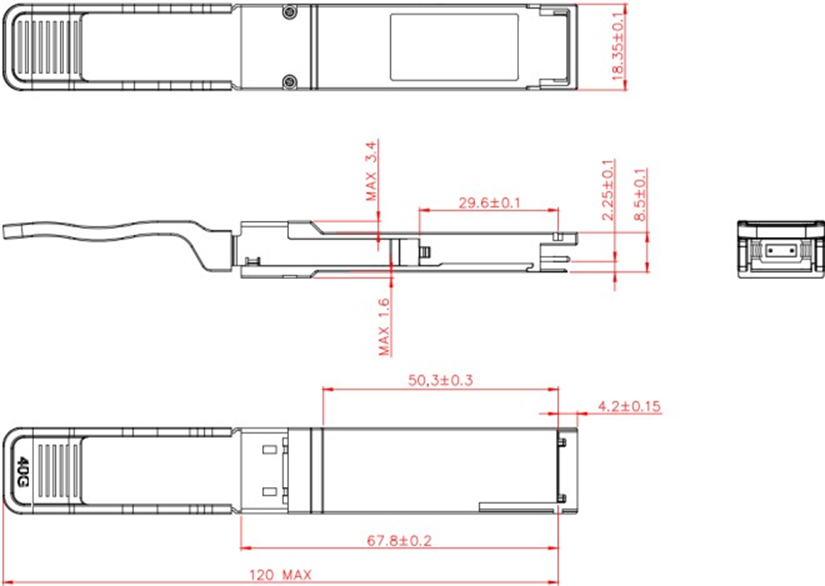

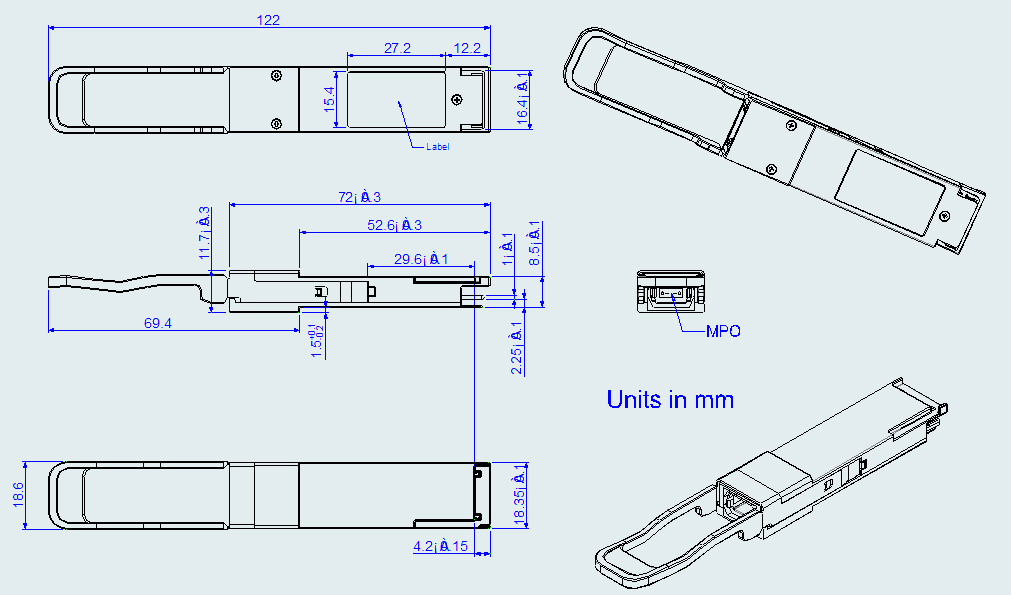

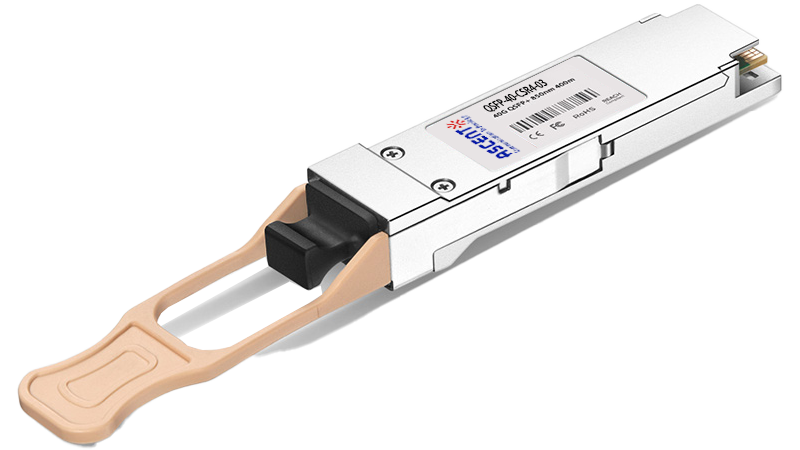

40G QSFP+ SR4 300 m

Ascent’s QSFP-AQ-LP-85-03 QSFP transceivers are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4.

    High channel capacity: 40 Gbps per module

    Up to 11.1 Gbps data rate per channel

    Maximum link length of 300 m links on OM3 multimode fiber or 400 m links on OM4 multimode fiber

    High reliability 850 nm VCSEL technology

    Electrically hot-pluggable

    Digital diagnostic SFF-8436 compliant

    Standard 12 lane with MPO connector

    Case operating temperature range: 0 °C to +70 °C

    Power dissipation < 0.7 W


Absolute Maximum Ratings

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Storage Temperature

Ts

‑40

85

°C


Relative Humidity

RH

5

95

%


Power Supply Voltage

VCC

‑0.3

4

V


Signal Input Voltage


Vcc‑0.3

Vcc+0.3

V


Damage threshold


3.4



dBm



Recommended Operating Conditions

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Case Operating Temperature

Tcase

0

70

°C

Without air flow

Power Supply Voltage

VCC

3.14

3.3

3.46

V


Power Supply Current

ICC


200

mA


Data Rate

BR


10.3125


Gbps

Each channel

Transmission Distance

TD


300

m

OM3 MMF





400

m

OM4 MMF

Optical Characteristics

Parameter

Symbol

Min

Typ.

Max

Unit

Note

Transmitter







Center Wavelength

λ0

840


860

nm


Average Launch Power Each Lane


‑7.6


2.4

dBm


Spectral Width (RMS)

σ



0.65

nm


Optical Extinction Ratio

ER

3



dB


Average Launch Power Off Each Lane

Poff



‑30

dBm


Transmitter and Dispersion Penalty Each Lane

TDP



3.5

dB


Optical Return Loss Tolerance

ORL



12

dB


Output Eye Mask

Compliant with IEEE 802.3ba


Receiver







Receiver Wavelength

λin

840


860

nm


Rx Sensitivity per Lane

RSENS



‑9.5

dBm

1

Input Saturation Power (Overload)

Psat

2.4



dBm


Receiver Reflectance

Rr



‑12

dB


LOS De‑Assert

LOSD



‑12

dBm


LOS Assert

LOSA

‑30



dBm


LOS Hysteresis


0.5



dBm


Notes:

1. Measured with a PRBS 231‑1 test pattern, @10.325 Gb/s, BER < 10‑12


Electrical Characteristics

Parameter

Symbol

Min

Typ.

Max

Unit

Note

Supply Voltage

Vcc

3.14

3.3

3.46

V


Supply Current

Icc



200

mA


Transmitter







Input Differential Impedance

Rin


100


Ω

1

Differential Data Input Swing

Vin, pp

180


1000

mV


Single‑Ended Input Voltage Tolerance

VinT

‑0.3


4.0

V


Receiver







Differential Data Output Swing

Vout, pp

300


850

mV

2

Single‑Ended Output Voltage


‑0.3


4.0

V


Notes:

1. Connected directly to TX data input pins. AC coupled thereafter.

2. Into 100 Ω differential termination.
