AG4142X XGSPON ONT
The AG4142X WiFi6 XGS-PON ONT is a high-performance terminal device designed to meet the demands of next-generation networks. Equipped with XGS-PON technology, it delivers ultra-fast fiber access, while its wireless capabilities feature 2T2R dual-band 802.11AX transmission. Operating in the 5GHz frequency band with 2x2 MIMO and 160MHz bandwidth, it achieves remarkable wireless speeds of up to 2400Mbps. Additionally, in the 2.4GHz band, it supports 2x2 MIMO transmission rates reaching 574Mbps, ensuring seamless and stable connectivity across multiple devices. Built with comprehensive functionality, the AG4142X incorporates all the essential features and security mechanisms expected from a modern wireless router. It supports a broad range of wireless standards, including IEEE 802.11ax, 802.11ac, 802.11b, 802.11g, 802.11a, and 802.11n, ensuring wide compatibility and flexible deployment across different network environments. Its robust security protocols safeguard user data and maintain network integrity, making it a reliable choice for both residential and business applications. With its advanced wireless technology, high-speed fiber access, and extensive security features, the AG4142X WiFi6 XGS-PON ONT provides users with an outstanding wireless experience. Whether for streaming high-definition content, online gaming, video conferencing, or smart home applications, it offers the high throughput, low latency, and stability necessary to support today’s increasingly connected world.

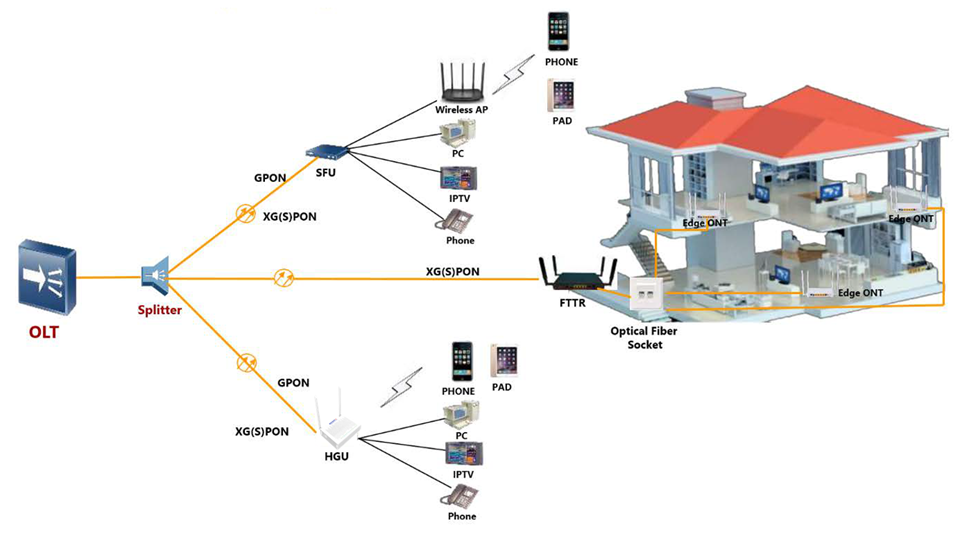

· Supports XGSPON uplink modes
· 4GE LAN + 1POTS + 1USB
· Support 2T2R dual band 802.11AX, in the 5GHz speed to 2400Mbps; in the 2.4GHz speed to 574Mbps
· Supports IPv4/IPv6
· Having better transmission quality, higher transmission rate, and a concurrent rate of up to 3000Mbps
· Adopting AN7581CT chip and providing 4*10/100/1000M Base-T network interfaces, suitable for full
service access and different interface requirements of various devices
· Provide IPv4/v6 based access control capabilities, packet filtering capabilities, anti DoS attack
capabilities, anti port scanning capabilities, anti illegal packet attack capabilities, and provide local
network logs
· Support AP working mode
· Support Quality of Service (QoS)
· Support WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK mixed mode, WPA3-SAE, WPA3-SAE Transition
mode, and support AES encryption authentication
· Support automatic wireless channel selection
· Support automatic negotiation/manual mode 802.11a/b/g/n/ac/ax
· Built-in DHCP server automatically assigns IP addresses
Parameter | Description | |
System Configuration | CPU | AN7581CT + EN7572 + MT7916AN + MT7976DN |
FLASH | Nand flash 256M Byte | |
DDR | 512M Byte | |
PORTS | LAN | 4*RJ45 |
PON | XGSPON | |
USB | 1*USB2.0 | |
FXS | 1*FXS | |
POWER | 12V/1.5A | |
BUTTON | RESET | Reset |
LED | LED button | |
WPS | WPS button | |
Power | ON/OFF S/W | |
LAN | LAN | 4*10/100/1000 LAN |
PON | CONN | SC/APC |
PON | 1 | |
PON standard | CLASS B | |
PON wavelength | TX 1270nm/RX 1577nm | |
Optical interface reception rate | GPON:10Gbit | |
Optical interface transmission rate | GPON:10Gbit | |
Output Optical Power | Minimum 0dBm | |
Sensitivity | Be better than -29.5dBm | |
LED | Power | Off: the ONT is not powered on; On: the ONT has been powered on and started, and is in a normal operating state; Flashing : the ONT is powering on; |
LOS | Off: OLT registration or authorization has not been successful yet; On: OLT registration or authorization has been successful; Flashing: OLT registration is in progress; | |
PON | Off: The optical signal is normal; Red flashing: the optical signal is lower than the sensitivity of the optical receiver; Red on: power supply of PON port optical module is off; | |
LAN | Off: indicates that the device is not powered on, or the LAN interface is disabled; On: indicates that the LAN interface has been activated; Flashing: indicates that data transmit on the LAN interface; | |
USB | Off: indicates that the system is not powered on, or that storage devices are not connected (i.e. USB and SATA are not connected to storage devices), or the indicator light is turned off; On: indicates that storage is connected (i.e. USB and SATA are connected to storage devices), but there is no data transmission; Flashing: indicates that data transmit with the storage device;
| |
FXS | Off: indicates that the system is not powered on or cannot be registered to the softswitch; On: indicates that the soft switch has been successfully registered, but there is no traffic flow; Flashing: indicates that there is a traffic flow transmission; | |
2.4G | Off: indicates that the system is not powered on, or the wireless interface 2.4GHz is disabled, or the indicator light is turned off; On: indicates that the 2.4GHz wireless interface has been activated; Flashing: indicates data transmission on the 2.4GHz wireless interface; | |
5G | Off: indicates that the system is not powered on, or the wireless interface 5GHz is disabled, or the indicator light is turned off; On: indicates that the 5GHz wireless interface has been activated; Flashing: indicates data transmission on the 5GHz wireless interface; | |
Appearance | Dimensions | 180mm * 135mm * 37.5mm |
Material quality | ABS 757 | |
Colour | White | |
Surface | Ra3.2 burnishing | |
Power | Consumption | < 15W |
Work Environment | Temperature | -5°C to 40°C |
Humidity | 10%~95% |
Software Characteristics
Parameter | Symbol | |
PON | ONU mark | SN/Password |
FEC | Support | |
DBA | Report the status of the T-CONT queue; Accept OLT Bandwidth allocation; Supports 5 T-CONT bandwidth types | |
GPON Characteristic Carameter | T-CONT: 8 GEM PORT: 32 | |
Optical Lnk Detection | Support 8 Queues with Strict Priority Ethernet port rate limitation 802.1 priority SP/WRP Service flow classification | |
LAN | MAC Address Capacity | 8K |
VLAN | 802.1q VLAN | 4K(1 to 4094 VLAN ID configurable) |
VLAN | Port based VLAN partitioning, VLAN tagging, de tagging, transparent transmission, filtering, VLAN Trunk, 1:1 VLAN conversion, Cos Remark | |
QoS | Flow Classification | Deep detection of packets: upstream flow classification based on physical port, source and destination MAC addresses, VLAN ID, User Priority, Ethernet type, source and destination IP addresses, IP protocol type, IP DSCP, source and destination L4 protocol ports |
Flow Label | Based on flow 이assification, optimize the level marking of upstream services and forcibly modify the priority marking | |
Dispatch Queue | Number of queues on the 4 network side/4 user side | |
Scheduling Algorithm | SP/WRR/SP+WRR | |
Discard Algorithm | Tail-Drop | |
Multicast | Multicast Protocol | IGMP Snooping |
Group Capacity | 1K | |
Secure | PON Data Encryption | AES-128 |
MAC Quantitative Restriction | 1 to 256 ports | |
ACL | 8 | |
Network management | Network | OMCI, OMCI+TR069, HTTP, Telnet |
Management | Configuration management/fault management/performance management/security management |
