Ascent’s QSFP-AQ-MP-85-03 QSFP transceivers are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4. The optical transmitter portion of the transceiver incorporates a 4-channel VCSEL array, a 4-channel input buffer and laser driver, diagnostic monitors, control and bias blocks. For module control, the control interface incorporates a two-wire serial interface of clock and data signals. Diagnostic monitors for VCSEL bias, module temperature, transmitted optical power, received optical power and supply voltage are implemented and results are available through the TWS interface. Alarm and warning thresholds are established for the monitored attributes. Fault detection or channel deactivation through the TWS interface will disable the channel. Status, alarm/warning and fault information are available via the TWS interface. The optical receiver portion of the transceiver incorporates a 4-channel PIN photodiode array, a 4-channel TIA array, a 4-channel output buffer, diagnostic monitors, and control and bias blocks. Diagnostic monitors for optical input power are implemented and results are available through the TWS interface. Alarm and warning thresholds are established for the monitored attributes.
· Compliant with QSFP+ MSA Specification
· Operating Temperature(0°C to 70°C)
· 4x10Gbps 850nm VCSEL-based Transmitter
· Maximum Link Length of 300m via OM3 Multimode Fiber(MMF)
· Be compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
· Be compliant to the IEEE 802.3ae 10GBASE-SR optical specification

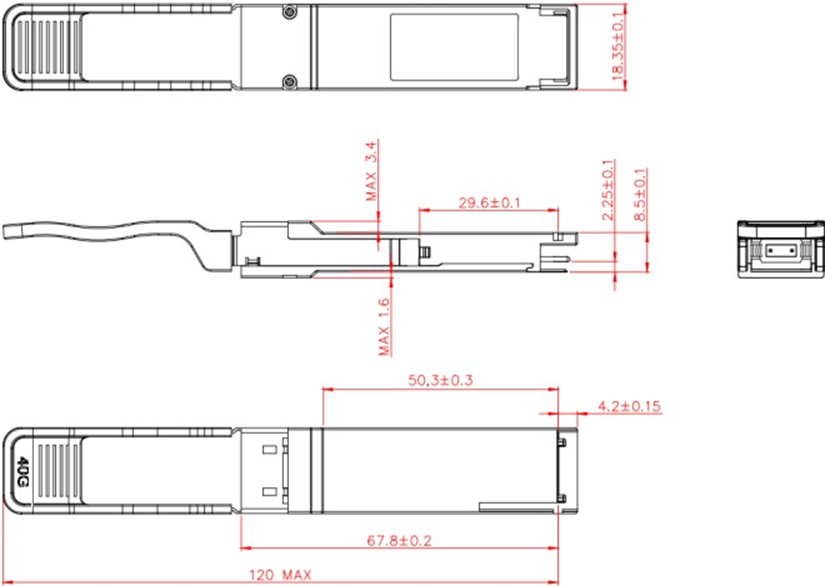

Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
Storage Temperature | TS | -40 | 85 | °C | ||
Relative Humidity | RH | 0 | 85 | % |
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
Operating Case Temperature | Tc | 0 | 70 | °C | ||
Power Supply Voltage | Vcc | 3.135 | 3.3 | 3.465 | V | |
Signaling Rate each Channel | 10.3125 | Gbps | ||||
Supply Noise Rejection | --- | --- | 100 | mV | ||
Receiver Differential Data Output | --- | 100 | Ohm | |||
Operating Distance | D | 300 | m | OM3 MMF |
Parameter | Symbol | Min | Typ. | Max | Unit | Note |
Transmitter | ||||||
Signaling Rate, each lane (range) | GBb | 10.3125 | GBb | |||
Center Wavelength | λ | 840 | 850 | 860 | nm | |
RMS Spectral Width | SW | 0.6 | nm | |||
Average Launch Power, each Lane | Pf | -4 | 2.4 | dBm | ||
Optical Modulation Amplitude (OMA), each Lane | TxOMA | -4 | 3 | dBm | ||
Average Launch Power of OFF Transmitter, each Lane | -30 | dBm | ||||
Extinction Ratio | ER | 3 | dB | |||
Optical Return Loss Tolerance | 12 | dB | ||||
Receiver | ||||||
Signaling rate, each lane (range) | GBb | 10.3125 | GBb | |||
Center Wavelength | λ | 840 | 860 | nm | ||
Damage threshold | 3.4 | dBm | ||||
Average power at receiver input, each lane | -11.5 | 2.4 | dBm | |||
Receive power, each lane (OMA) | 3 | dBm | ||||
Receiver sensitivity (OMA) | SOMA | -11.1 | dBm | BER@1e-12 | ||
Receiver reflectance | -12 | dB | ||||
LOS Assert | LOSA | -30 | dBm | |||
LOS De-Assert | LOSD | -11 | dBm | |||
LOS Hysteresis | 0.5 | dB |
Parameter | Symbol | Min | Typ. | Max | Unit | Note |
Power Consumption | 1.5 | W | ||||
Supply Current | Icc | 450 | mA |
