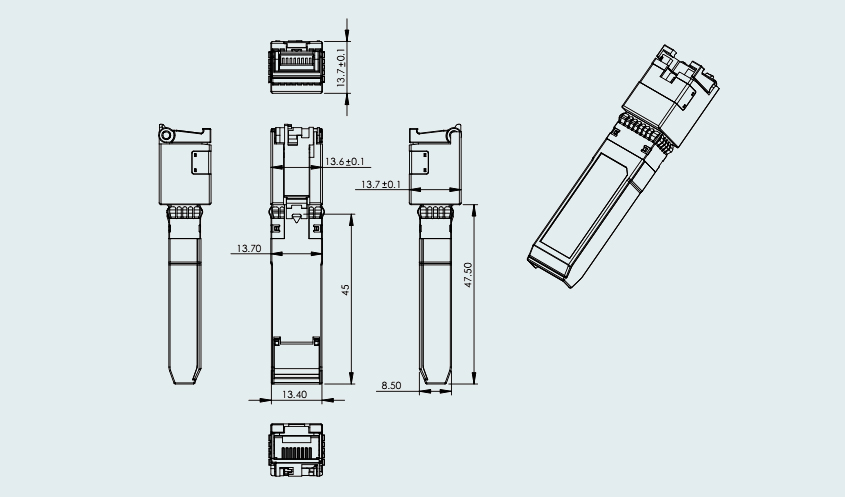

Ascent’s 10GBASE-T SFP+ copper transceivers are based on the SFP Multi-Source Agreement (MSA). These 10GBASE SFP+ series modules offer a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.
• Supports 10GBASE-T / 5GBASE-T / 2.5GBASE-T / 1000BASE-T
• Compact RJ45 connector assembly
• RoHS compliant and lead-free
• Commercial Temperature Range: 0 °C to +70°C
• Single +3.3 V power supply
• 10 Gigabit Ethernet over Cat6a/Cat7 cable
General Product Characteristics
Parameter | Symbol | Min | Typ. | Max | Unit | Notes/Conditions |
Bit Rate | BR | 1 | 10 | Gb/sec | IEEE 802.3 compatible. |
Note:
Clock tolerance is ±50 ppm
Environmental Specifications
Parameter | Symbol | Min | Typ. | Max | Unit | Notes/Conditions |
Operating Temperature | Top | 0 | 65 | °C | Case temperature | |
Storage Temperature | Tsto | ‑40 | 85 | °C | Ambient temperature |
Notes:
Automatic crossover detection is enabled. External crossover cable is not required.
Transmission Distances
Standard | Cable | Reach | Host Port |
10GBASE‑T | Cat6a/Cat7 | 30m | XFI |
5GBASE‑T/2.5GBASE‑T | Cat5e | 50m | 5GBASE‑R/2.5GBASE‑X |
1000BASE‑T | Cat5e | 100m | 1000BASE‑FX |
Electronic Characteristics
MOD_DEF(1) (SCL) and MOD_DEF(2) (SDA), are open drain CMOS signals (see section VII, "Serial Communication Protocol"). Both MOD_DEF(1) and MOD_DEF(2) must be pulled up to host_Vcc
Low‑Speed Signals, Electronic Characteristics | |||||
Parameter | Symbol | Min | Max | Unit | Notes/Conditions |
SFP Output LOW | VOL | 0 | 0.5 | V | 4.7k to 10k pull‑up to host_Vcc, measured at host side of connector |
SFP Output HIGH | VOH | host_Vcc ‑0.5 | host_Vcc + 0.3 | V | 4.7k to 10k pull‑up to host_Vcc, measured at host side of connector |
SFP Input LOW | VIL | 0 | 0.8 | V | 4.7k to 10k pull‑up to Vcc, measured at SFP side of connector |
SFP Input HIGH | VIH | 2 | Vcc + 0.3 | V | 4.7k to 10k pull‑up to Vcc, measured at SFP side of connector |
+3.3V Volt Electrical Power Interface
The SFPP‑AT‑CO‑03 has an input voltage range of 3.3 V +/‑ 5%. The 4V maximum voltage is not allowed for continuous operation.
Parameter | Symbol | Min | Typ. | Max | Unit | Notes/Conditions |
Supply Current | Is | 700 | 900 | mA | 3.0 W max power over a full range of voltage and temperature. See caution note below. | |
Input Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | Referenced to GND |
Maximum Voltage | Vmax | 4 | V | |||
Surge Current | Isurge | TBD | mA | Hot plug above steady state current. See caution note below. |
Note:
Power consumption and surge current are higher than the specified values in the SFP MSA.
High‑Speed Electrical Interface
All high‑speed signals are AC‑coupled internally.
Parameter | Symbol | Min | Typ. | Max | Unit | Notes/Conditions |
High‑Speed Electrical Interface, Transmission Line‑SFP | ||||||
Line Frequency | fL | 125 | MHz | 5‑level encoding, perIEEE 802.3 | ||
Tx Output Impedance | Zout,TX | 100 | Ω | Differential, for all frequencies between 1MHz and 125 MHz | ||
Rx Input Impedance | Zin,RX | 100 | Ω | Differential, for all frequencies between 1MHz and 125 MHz | ||
High‑Speed Electrical Interface, Host‑SFP | ||||||
Single ended data inputswing | Vinsing | 250 | 1200 | mV | Single‑ended | |
Single ended data outputswing | Voutsing | 350 | 800 | mV | Single‑ended | |
Rise/Fall Time | Tr,Tf | 175 | psec | 20 % to 80 % | ||
Tx Input Impedance | Zin | 50 | Ω | Single‑ended | ||
Rx Output Impedance | Zout | 50 | Ω | Single‑ended |
Serial Communication Protocol
All Ascent SFPs support the 2‑wire serial communication protocol outlined in the SFP MSA. These SFPs use an MCU, can be accessed with address of A0h.
Parameter | Symbol | Min | Typ. | Max | Unit | Notes/Conditions |
Serial Bus Timing, Requirements | ||||||
I2C Clock Rate | 0 | 200,000 | Hz |
