The ACT RON1500B Series is a cost-effective, high-performance RFoG optical network unit (ONU) designed and optimized for standards-compliant RFoG Fiber-to-the-Home (FTTH) networks. It enables cable operators to maximize their existing HFC infrastructure investment while continuing to deliver DOCSIS-based Internet, telephony, and Video-on-Demand services over fiber. As part of ACT’s comprehensive FTTx solution suite, the RON1512 optical node supports 1550 nm forward-path RF transmission and return-path upstream signals at multiple CWDM wavelengths in a 1×32 split FTTH topology. The unit features a low-noise optical receiver and an isolated DFB laser transmitter for stable upstream modulation from set-top boxes (STBs) or DOCSIS modems. An optional PON upgrade port allows seamless convergence with next generation PON systems, providing multiple-system operators (MSOs) with a flexible migration path toward next-generation PON-based FTTH deployments. Designed for bidirectional HFC applications, the RON1500B integrates optical transmit and receive paths over a single fiber, effectively minimizing return-path noise and ensuring high-reliability signal transmission for modern CATV broadband networks.
· Excellent AGC characteristic, when the AGC range is -8 to 0dBm, the output level remain unchanged, CTB and
CSO basically unchanged.
· Optimizing circuit design, SMT production process, optimizing the whole signal path, makes the
photoelectronic signal transmission more stable, RF linear indicators higher.
· Professional RF attenuator circuit, with good attenuation linear and high precision.
· GaAs amplifier device, with good index, low distortion and high reliability.
· The shell adopts aluminum die casting, cooling effect is good and the appearance is exquisite.

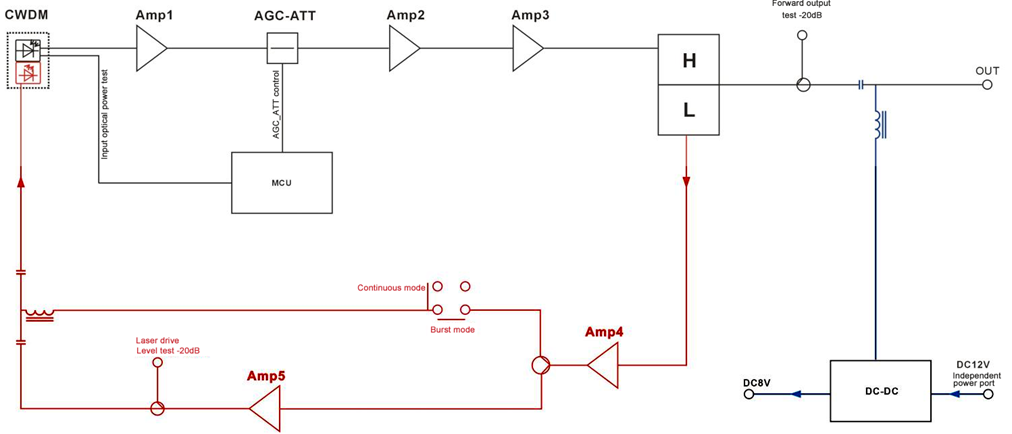

· The turning on mode of reverse laser can be set to continuous mode or burst mode.
Item | Technical Parameters | |||
Forward Optical Receiver | ||||
Optical Parameters | AGC Range | -8dBm to 0dBm | ||
Optical Return Loss | > 45dB | |||
Optical Receiving Wavelength | 1550+/-10nm | |||
Optical Connector Type | SC/APC | |||
Optical Fiber Type | Single mode | |||
Link Performance | C/N | ≥ 51dB (Pin= -1dBm) | ||
C/CTB | ≥ 62dB | @Pin=-8dBm, 42ch, OMI 3.5% | ||
C/CSO | ≥ 64dB | |||
RF Parameters | Frequency Range | 54 MHz to 1218MHz | ||
Flatness in Band | ±0.75dB @-3dBm | |||
Rated Output Level | ≥ 92dBμV | |||
Max Output Level | ≥ 92dBμV | |||
Output Return Loss | ≥16dB | |||
Output Impedance | 75Ω | |||
Reverse Optical Transmiter | ||||
Optical Parameters | Laser ON/OFF | <1.3sec | ||
Optical Transmit Wavelength | 1310nm or other standard CWDM wavelengths | |||
Laser Type | DFB laser | |||
Optical Output Power | 0.1dBm to 0.4 dBm | |||
Optical Connector Type | SC/APC | |||
Laser Mode | Continuous mode or burst mode | |||
Optical Power (Laser Turns Off) | -24dBm to -26dBm | |||
RF Parameters | Level (Laser Turns Off) | OFF: 58±1.5dBuV | ||
Level (Laser Turns On) | ON: 68±1.5dBuV | |||
Frequency Range | 5MHz to 42MHz | |||
Flatness in Band | ±0.75dB | |||
Input Return Loss | ≥ 16dB | |||
Output Impedance | 75Ω | |||
NPR Dynamic Range | >35dB (Input range >15dB) | |||
| Power Voltage | DC12V | ||
General Performance | ||||
ESD | 2KV (RF port) | |||
Operating Temperature | -20°C to +55°C | |||
Storage Temperature | -30°C to +70°C | |||
Relative Humidity | Max 95% no condensation | |||
Consumption | ≤6.5W | |||
Dimension | 154mm(L) x 116mm(W) x 26mm(H) | |||
